STPS1H100U

STPS1H100U

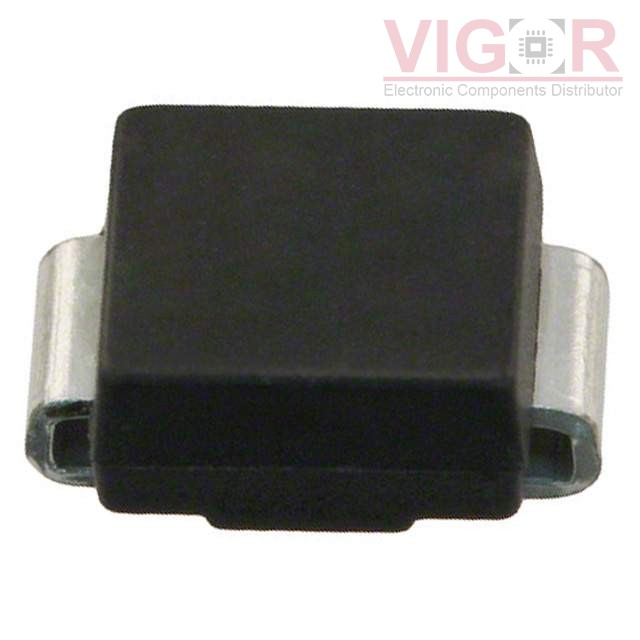

Image is for reference,
please contact us to get the real picture

Part No :

STPS1H100U

Manufacturer
STMicroelectronics
Description
DIODE SCHOTTKY 100V 1A SMB
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
STPS1H100U PDF
Availability
15000 pieces
Unit Price
$0.44000

Current price of STPS1H100U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STPS1H100U Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):100 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:770 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:4 µA @ 100 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB
Operating Temperature - Junction:175°C (Max)
