SB220

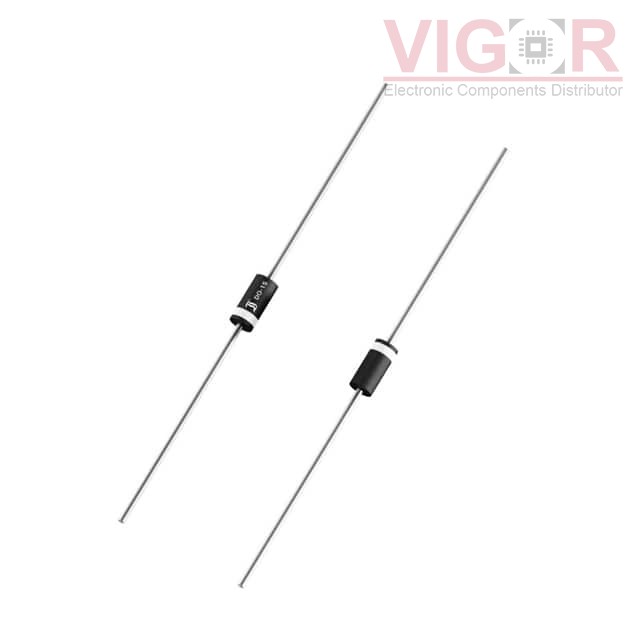

Image is for reference,
please contact us to get the real picture

Part No :: SB220

Manufacturer: Diotec Semiconductor

Description: SCHOTTKY DO-15 20V 2A

Catalog: Diodes - Rectifiers - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: SB220 PDF

Availability: 0 pieces

Unit Price: ~~$0.09420~~

Current price of SB220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SB220 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	20 V
Current - Average Rectified (Io):	2A
Voltage - Forward (Vf) (Max) @ If:	500 mV @ 2 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	500 µA @ 20 V
Capacitance @ Vr, F:	-
Mounting Type:	Through Hole
Package / Case:	DO-204AC, DO-15, Axial
Supplier Device Package:	DO15/DO204AC
Operating Temperature - Junction:	-50°C ~ 150°C

Please confirm the specifications of the products when ordering.
