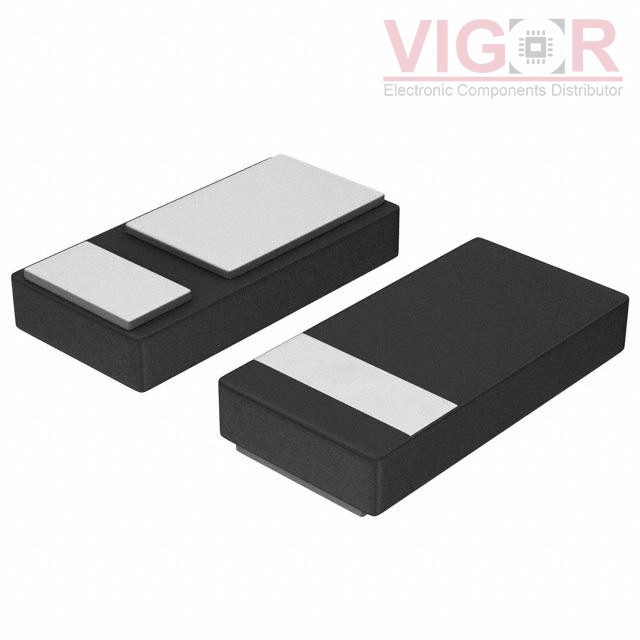

NSR05F20NXT5G

NSR05F20NXT5G

Image is for reference,
please contact us to get the real picture

Part No :

NSR05F20NXT5G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
DIODE SCHOTTKY 20V 500MA 2DSN
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
NSR05F20NXT5G PDF
Availability
2147483647 pieces
Unit Price
$0.42000

Current price of NSR05F20NXT5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSR05F20NXT5G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):20 V
Current - Average Rectified (Io):500mA (DC)
Voltage - Forward (Vf) (Max) @ If:430 mV @ 500 mA
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:75 µA @ 20 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:2-XDFN
Supplier Device Package:2-DSN (1x.60)
Operating Temperature - Junction:150°C (Max)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MMSD4148T1

MMSD4148T1

RECTIFIER DIODE

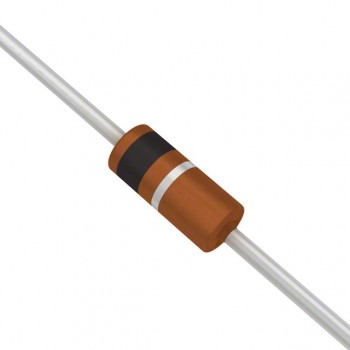

HOT SD103C-TR

SD103C-TR

DIODE SCHOTTKY 20V DO35

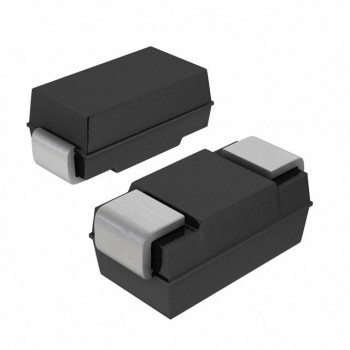

HOT RB162L-60TE25
