STPS1170AFN

STPS1170AFN

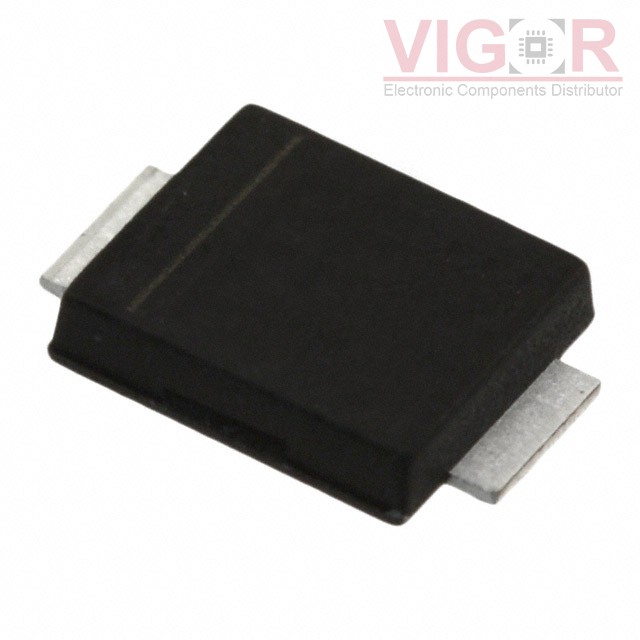

Image is for reference,
please contact us to get the real picture

Part No :

STPS1170AFN

Manufacturer
STMicroelectronics
Description
170 V, 1 A POWER SCHOTTKY RECTIF
Catalog
Diodes - Rectifiers - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
STPS1170AFN PDF
Availability
0 pieces
Unit Price
$0.09555

Current price of STPS1170AFN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STPS1170AFN Specifications
Type Description
Series:ECOPACK®2
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):170 V
Current - Average Rectified (Io):1A
Voltage - Forward (Vf) (Max) @ If:820 mV @ 1 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:1.5 µA @ 170 V
Capacitance @ Vr, F:-
Mounting Type:Surface Mount
Package / Case:DO-221AC, SMA Flat Leads
Supplier Device Package:SMAflat Notch
Operating Temperature - Junction:175°C (Max)
