JANTX1N5520D-1

JANTX1N5520D-1

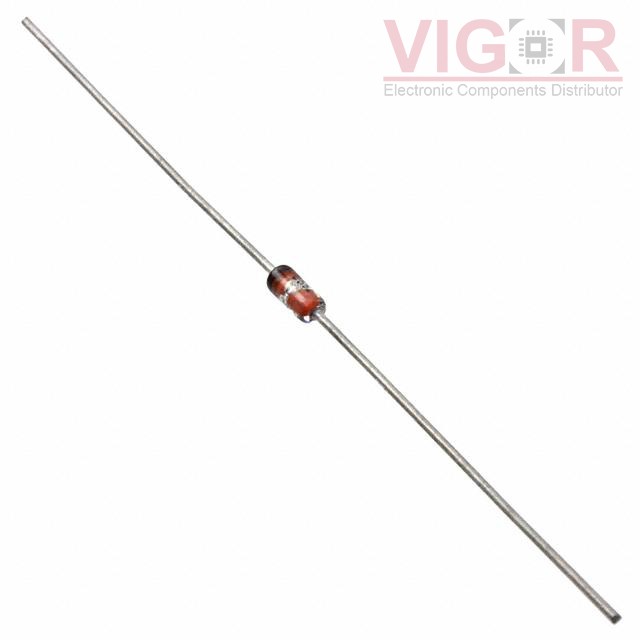

Image is for reference,
please contact us to get the real picture

Part No :

JANTX1N5520D-1

Manufacturer
Roving Networks / Microchip Technology
Description
DIODE ZENER 3.9V 500MW DO35
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
JANTX1N5520D-1 PDF
Availability
0 pieces
Unit Price
$19.68200

Current price of JANTX1N5520D-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JANTX1N5520D-1 Specifications
Type Description
Series:Military, MIL-PRF-19500/437
Package:Bulk
Part Status:Active
Voltage - Zener (Nom) (Vz):3.9 V
Tolerance:±1%
Power - Max:500 mW
Impedance (Max) (Zzt):22 Ohms
Current - Reverse Leakage @ Vr:1 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If:1.1 V @ 200 mA
Operating Temperature:-65°C ~ 175°C
Mounting Type:Through Hole
Package / Case:DO-204AH, DO-35, Axial
Supplier Device Package:DO-35 (DO-204AH)
