STL100N8F7

STL100N8F7

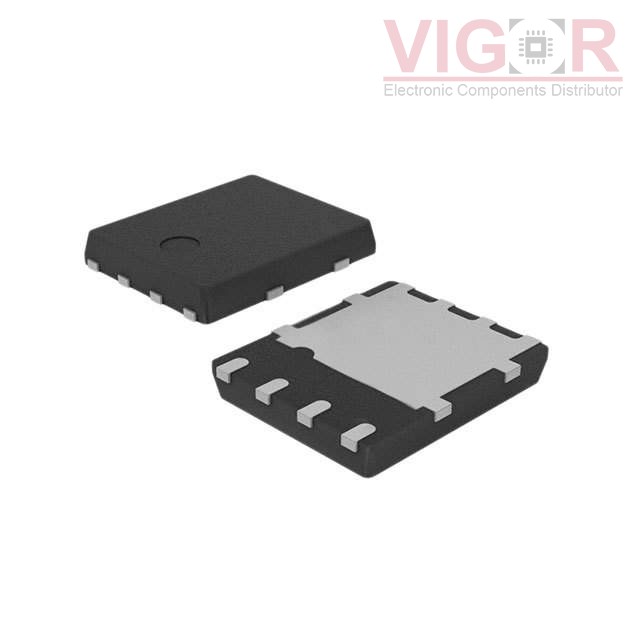

Image is for reference,
please contact us to get the real picture

Part No :

STL100N8F7

Manufacturer
STMicroelectronics
Description
MOSFET N-CH 80V 100A POWERFLAT
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
STL100N8F7 PDF
Availability
0 pieces
Unit Price
$2.18000

Current price of STL100N8F7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STL100N8F7 Specifications
Type Description
Series:STripFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:6.1mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:46.8 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3435 pF @ 40 V
FET Feature:-
Power Dissipation (Max):4.8W (Ta), 120W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
