IPA80R750P7XKSA1

IPA80R750P7XKSA1

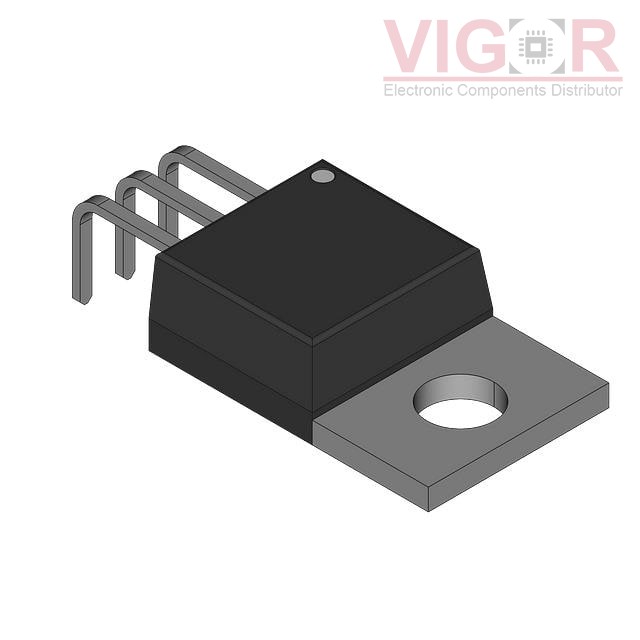

Image is for reference,
please contact us to get the real picture

Part No :

IPA80R750P7XKSA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CHANNEL 800V 7A TO220
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
IPA80R750P7XKSA1 PDF
Availability
480 pieces
Unit Price
$1.76000

Current price of IPA80R750P7XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPA80R750P7XKSA1 Specifications
Type Description
Series:CoolMOS™ P7
Package:Tube
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):800 V
Current - Continuous Drain (Id) @ 25°C:7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:750mOhm @ 2.7A, 10V
Vgs(th) (Max) @ Id:3.5V @ 140µA
Gate Charge (Qg) (Max) @ Vgs:17 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:460 pF @ 500 V
FET Feature:-
Power Dissipation (Max):27W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:PG-TO220 Full Pack
Package / Case:TO-220-3 Full Pack
