BSR802NL6327HTSA1

BSR802NL6327HTSA1

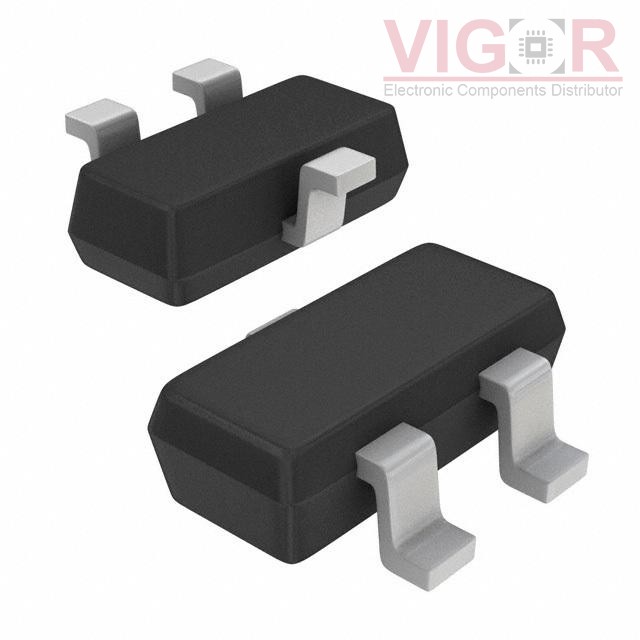

Image is for reference,
please contact us to get the real picture

Part No :

BSR802NL6327HTSA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 20V 3.7A SC59
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
BSR802NL6327HTSA1 PDF
Availability
0 pieces
Unit Price
$0.54000

Current price of BSR802NL6327HTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BSR802NL6327HTSA1 Specifications
Type Description
Series:OptiMOS™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:3.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 2.5V
Rds On (Max) @ Id, Vgs:23mOhm @ 3.7A, 2.5V
Vgs(th) (Max) @ Id:750mV @ 30µA
Gate Charge (Qg) (Max) @ Vgs:4.7 nC @ 2.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:1447 pF @ 10 V
FET Feature:-
Power Dissipation (Max):500mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-SC-59
Package / Case:TO-236-3, SC-59, SOT-23-3
