CM8663Z161B-10

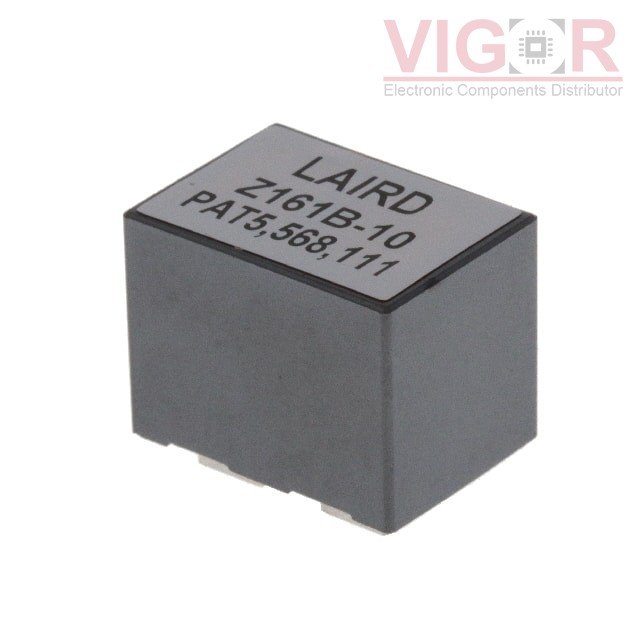

Image is for reference,
please contact us to get the real picture

Part No :: CM8663Z161B-10

Manufacturer: Laird - Performance Materials

Description: CMC 82A 2LN 160 OHM TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CM8663Z161B-10 PDF

Availability: 390 pieces

Unit Price: ~~$11.43000~~

Current price of CM8663Z161B-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM8663Z161B-10 Specifications

Type	Description
Series:	CM
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	160 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	82A
DC Resistance (DCR) (Max):	0.15mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 155°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max):	0.650" (16.50mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
