TLF9UA302WR42K1

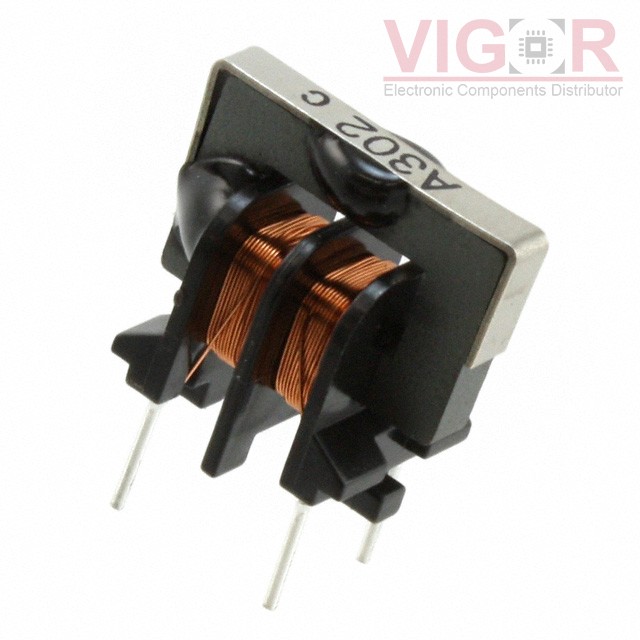

Image is for reference,
please contact us to get the real picture

Part No :: TLF9UA302WR42K1

Manufacturer: TAIYO YUDEN

Description: CMC 3MH 420MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: TLF9UA302WR42K1 PDF

Availability: 0 pieces

Unit Price: ~~$0.46966~~

Current price of TLF9UA302WR42K1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TLF9UA302WR42K1 Specifications

Type	Description
Series:	TLF9
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	420mA
DC Resistance (DCR) (Max):	1.5Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max):	0.630" (16.00mm)
Package / Case:	Vertical, 4 PC Pin
