CC1812C513R-10

CC1812C513R-10

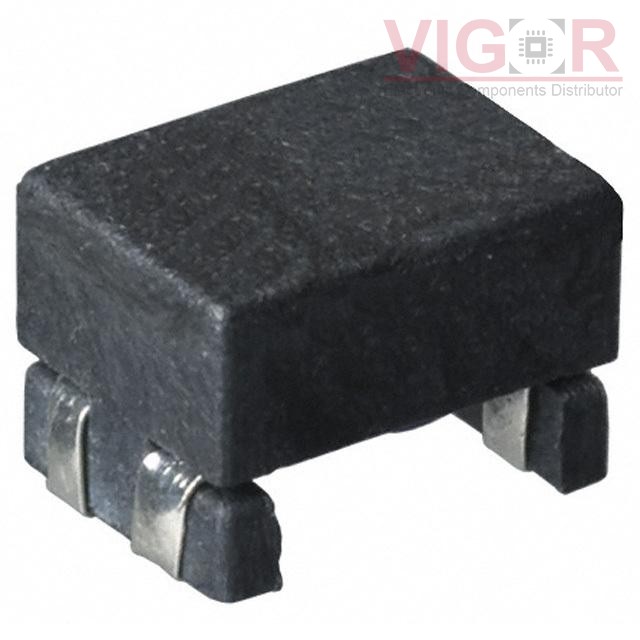

Image is for reference,
please contact us to get the real picture

Part No :

CC1812C513R-10

Manufacturer
Laird - Performance Materials
Description
CMC 51UH 200MA 2LN 3.5 KOHM SMD
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
CC1812C513R-10 PDF
Availability
17427 pieces
Unit Price
$5.65000

Current price of CC1812C513R-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CC1812C513R-10 Specifications
Type Description
Series:CC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:2
Impedance @ Frequency:3.5 kOhms @ 40 MHz
Inductance @ Frequency:51 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):200mA
DC Resistance (DCR) (Max):500mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:42V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.205" L x 0.138" W (5.20mm x 3.50mm)
Height (Max):0.140" (3.55mm)
Package / Case:Horizontal, 4 Flat Lead
