EV28-2.0-02-11M

EV28-2.0-02-11M

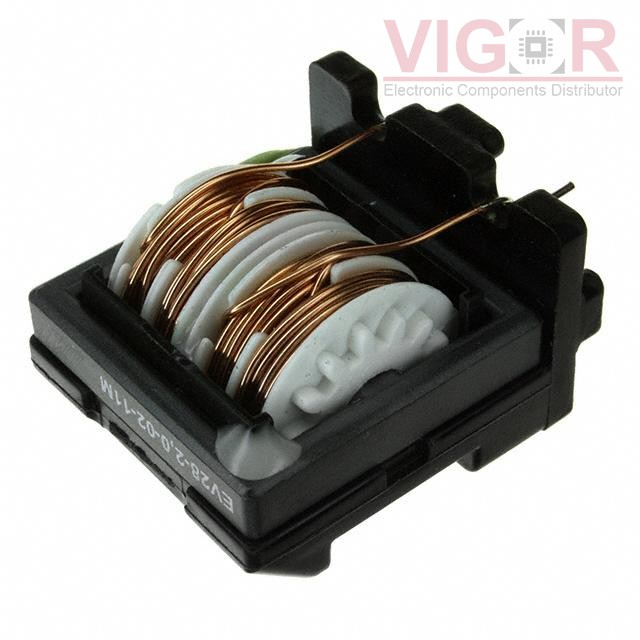

Image is for reference,
please contact us to get the real picture

Part No :

EV28-2.0-02-11M

Manufacturer
Schaffner EMC, Inc.
Description
COMMON MODE CHOKE 11MH 2A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
EV28-2.0-02-11M PDF
Availability
463 pieces
Unit Price
$3.32000

Current price of EV28-2.0-02-11M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EV28-2.0-02-11M Specifications
Type Description
Series:EV
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:11 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2A
DC Resistance (DCR) (Max):162mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-25°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max):1.406" (35.70mm)
Package / Case:Vertical, 4 PC Pin
