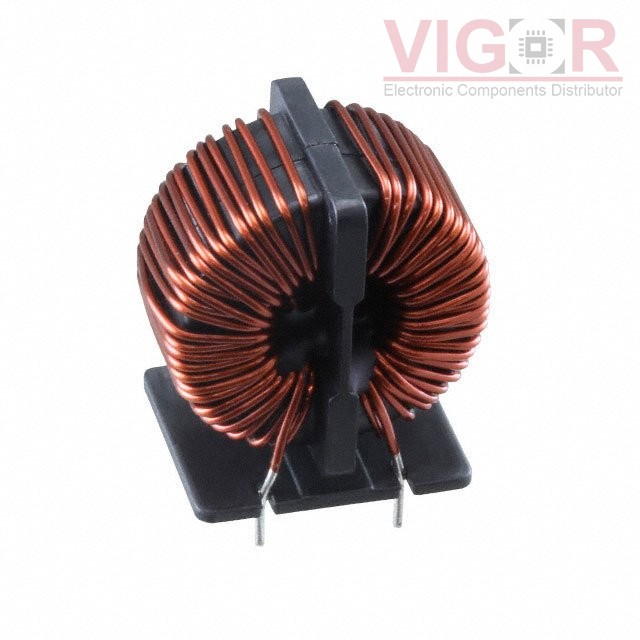

RT8522-12-5M0

RT8522-12-5M0

Image is for reference,
please contact us to get the real picture

Part No :

RT8522-12-5M0

Manufacturer
Schaffner EMC, Inc.
Description
COMMON MODE CHOKE 5MH 12A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
RT8522-12-5M0 PDF
Availability
98 pieces
Unit Price
$9.72000

Current price of RT8522-12-5M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RT8522-12-5M0 Specifications
Type Description
Series:RT
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:5 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):12A
DC Resistance (DCR) (Max):14mOhm (Typ)
Voltage Rating - DC:425V
Voltage Rating - AC:300V
Operating Temperature:-40°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.969" L x 1.260" W (50.00mm x 32.00mm)
Height (Max):2.047" (52.00mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT P0351NLT

P0351NLT

COMMON MODE CHOKE 2.8A 2LN SMD

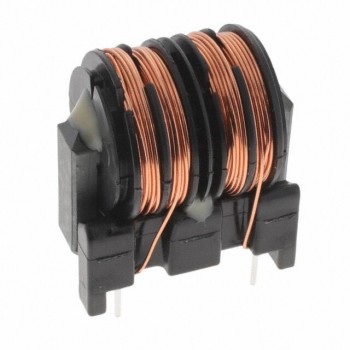

HOT SS30V-120290

SS30V-120290

CMC 29MH,1.2A, 0.6OHM

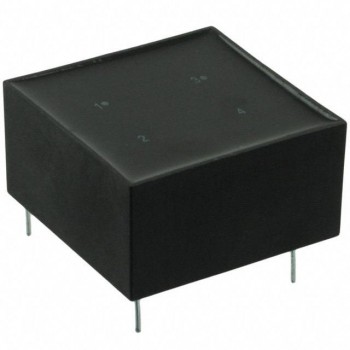

HOT PE-62897NL
