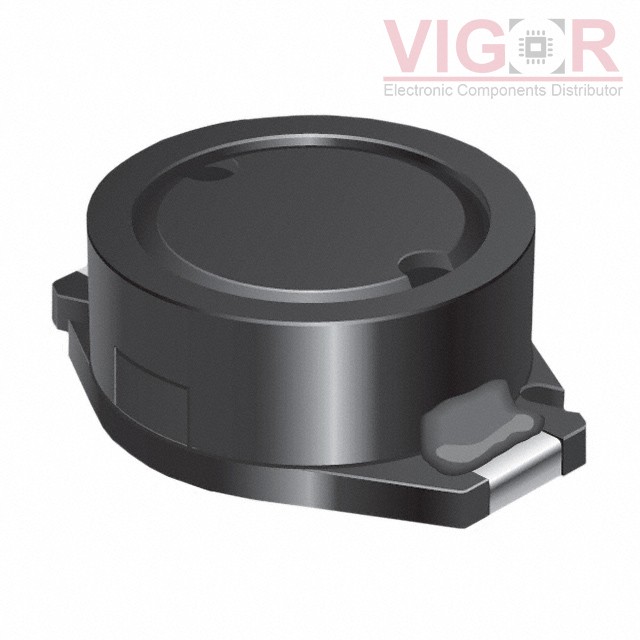

SRR1003-560M

SRR1003-560M

Image is for reference,
please contact us to get the real picture

Part No :

SRR1003-560M

Manufacturer
J.W. Miller / Bourns
Description
FIXED IND 56UH 520MA 680MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
SRR1003-560M PDF
Availability
0 pieces
Unit Price
$0.41140

Current price of SRR1003-560M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SRR1003-560M Specifications
Type Description
Series:SRR1003
Package:Tape & Reel (TR)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:56 µH
Tolerance:±20%
Current Rating (Amps):520 mA
Current - Saturation (Isat):1.3A
Shielding:Shielded
DC Resistance (DCR):680mOhm Max
Q @ Freq:15 @ 2.52MHz
Frequency - Self Resonant:13MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:1 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.406" W (12.70mm x 10.30mm)
Height - Seated (Max):0.118" (3.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 74476410

74476410

FIXED IND 10UH 150MA 2.1 OHM SMD
HOT VCMT053T-2R2MN5

VCMT053T-2R2MN5

FIXED IND 2.2UH 6.4A 23 MOHM SMD

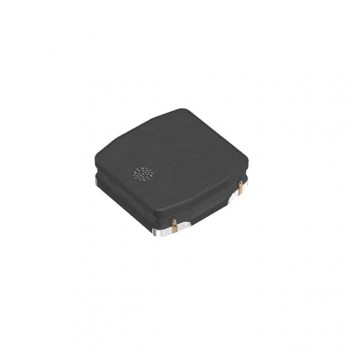

HOT VLS4012HBX-6R8M
