AP1016AEN

AP1016AEN

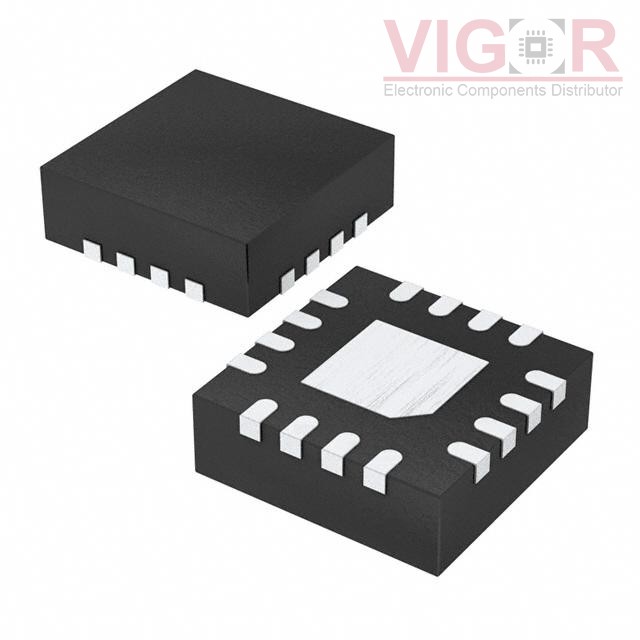

Image is for reference,
please contact us to get the real picture

Part No :

AP1016AEN

Manufacturer
Asahi Kasei Microdevices / AKM Semiconductor
Description
IC MOTOR DRIVER 9V 16QFN
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
AP1016AEN PDF
Availability
9683 pieces
Unit Price
$1.48000

Current price of AP1016AEN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AP1016AEN Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Output Configuration:Half Bridge (4)
Applications:General Purpose, Stepper Motors
Interface:Logic
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):270mOhm LS, 270mOhm HS
Current - Output / Channel:1A
Current - Peak Output:1.4A
Voltage - Supply:2.7V ~ 5.5V
Voltage - Load:2V ~ 9V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:16-UFQFN Exposed Pad
Supplier Device Package:16-QFN (3x3)
