MP8046DF-LF-P

MP8046DF-LF-P

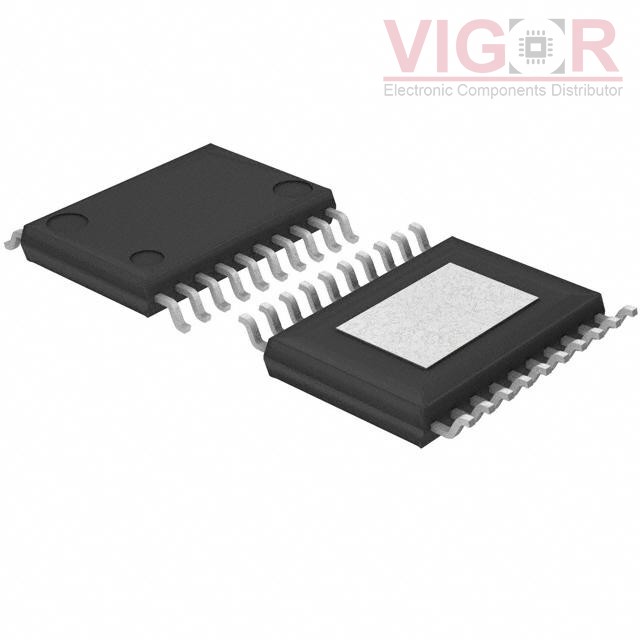

Image is for reference,
please contact us to get the real picture

Part No :

MP8046DF-LF-P

Manufacturer
MPS (Monolithic Power Systems)
Description
IC HALF BRIDGE DVR 5A 28V 20TSSO
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
MP8046DF-LF-P PDF
Availability
400 pieces
Unit Price
$3.07930

Current price of MP8046DF-LF-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MP8046DF-LF-P Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Output Configuration:Half Bridge (2)
Applications:General Purpose
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):165mOhm
Current - Output / Channel:-
Current - Peak Output:5A
Voltage - Supply:7.5V ~ 28V
Voltage - Load:7.5V ~ 28V
Operating Temperature:-40°C ~ 125°C (TJ)
Features:Status Flag
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:20-TSSOPF-EP
