E-L6202

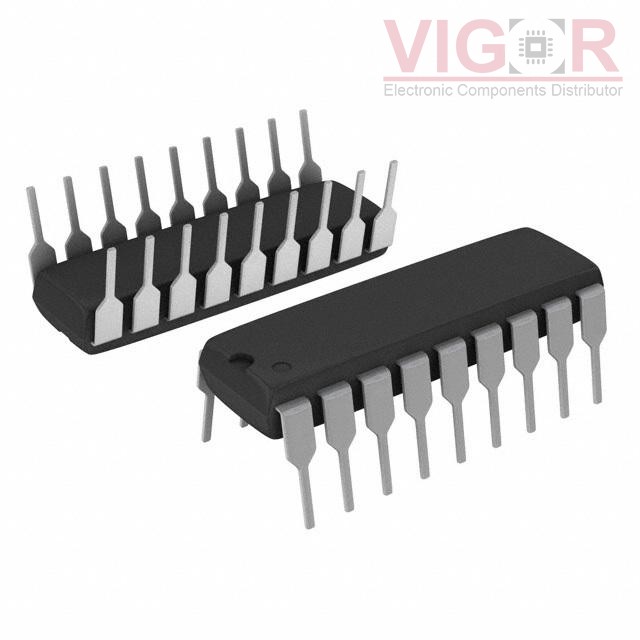

Image is for reference,
please contact us to get the real picture

Part No :

E-L6202

Manufacturer
STMicroelectronics
Description
IC BRIDGE DRIVER PAR 18POWERDIP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
E-L6202 PDF
Availability
232 pieces
Unit Price
$0.00000

Current price of E-L6202 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:BCDMOS
Rds On (Typ):300mOhm
Current - Output / Channel:1.5A
Current - Peak Output:-
Voltage - Supply:12V ~ 48V
Voltage - Load:12V ~ 48V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Bootstrap Circuit
Fault Protection:Over Temperature
Mounting Type:Through Hole
Package / Case:18-DIP (0.300", 7.62mm)
Supplier Device Package:18-PowerDIP
