MP8042DF-LF-P

MP8042DF-LF-P

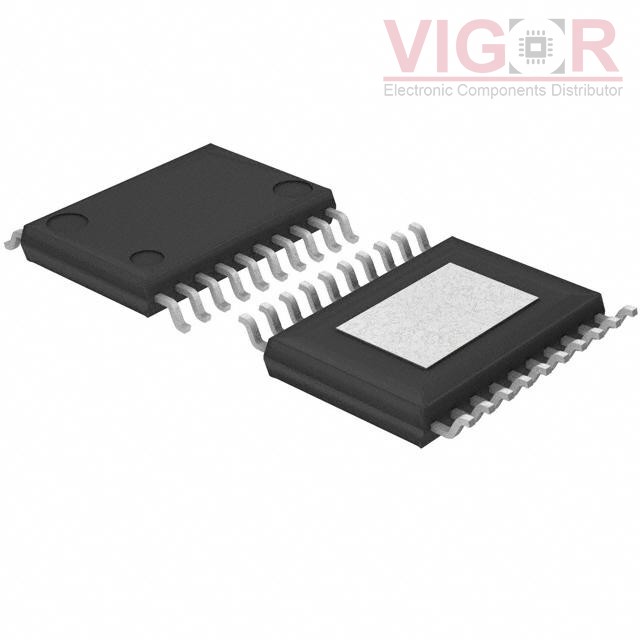

Image is for reference,
please contact us to get the real picture

Part No :

MP8042DF-LF-P

Manufacturer
MPS (Monolithic Power Systems)
Description
IC HALF BRIDGE DVR 20TSSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
MP8042DF-LF-P PDF
Availability
653 pieces
Unit Price
$0.00000

Current price of MP8042DF-LF-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MP8042DF-LF-P Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:General Purpose
Interface:PWM
Load Type:Inductive
Technology:Power MOSFET
Rds On (Typ):150mOhm
Current - Output / Channel:-
Current - Peak Output:5A
Voltage - Supply:7.5V ~ 24V
Voltage - Load:7.5V ~ 24V
Operating Temperature:-40°C ~ 125°C (TJ)
Features:Status Flag
Fault Protection:Current Limiting, Over Temperature, UVLO
Mounting Type:Surface Mount
Package / Case:20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:20-TSSOPF-EP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
