SA57AHU

SA57AHU

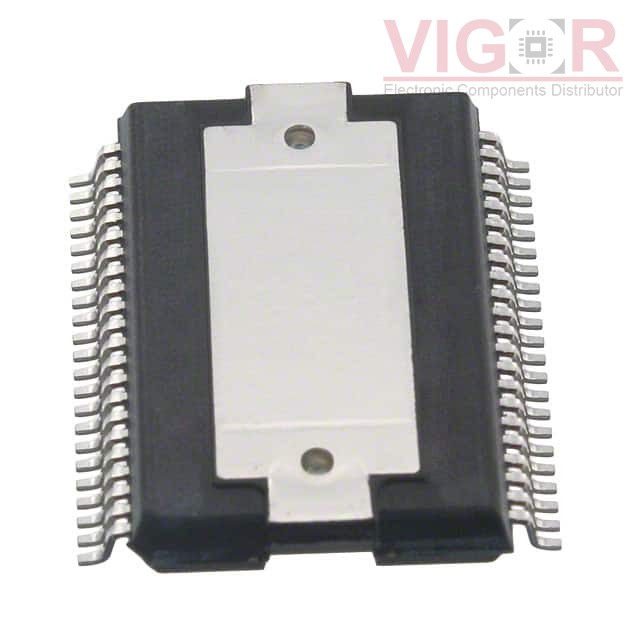

Image is for reference,
please contact us to get the real picture

Part No :

SA57AHU

Manufacturer
Apex Microtechnology
Description
IC MOTOR DRIVER PAR 44HSOP
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
SA57AHU PDF
Availability
1386 pieces
Unit Price
$0.00000

Current price of SA57AHU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SA57AHU Specifications
Type Description
Series:Apex Precision Power®
Package:Bulk
Part Status:Discontinued at Digi-Key
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose, Solenoids, Stepper Motors
Interface:PWM
Load Type:Inductive
Technology:DMOS
Rds On (Typ):300mOhm
Current - Output / Channel:8A
Current - Peak Output:17A
Voltage - Supply:4.5V ~ 5.5V
Voltage - Load:9V ~ 60V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:-
Fault Protection:Current Limiting, Over Temperature, Shoot-Through, UVLO
Mounting Type:Surface Mount
Package / Case:44-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:44-HSOP
