ADM2567EBRNZ

ADM2567EBRNZ

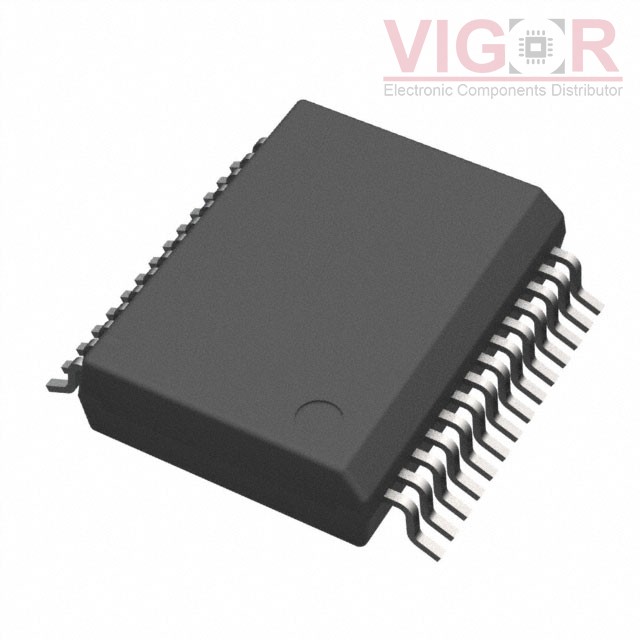

Image is for reference,
please contact us to get the real picture

Part No :

ADM2567EBRNZ

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
3.75KV ISOLATED RS485 25MBPS FD
Catalog
Digital Isolators
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
ADM2567EBRNZ PDF
Availability
0 pieces
Unit Price
$12.60000

Current price of ADM2567EBRNZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ADM2567EBRNZ Specifications
Type Description
Series:iCoupler®
Package:Tube
Part Status:Active
Technology:Magnetic Coupling
Type:RS422, RS485
Isolated Power:Yes
Number of Channels:4
Inputs - Side 1/Side 2:1/3
Channel Type:Unidirectional
Voltage - Isolation:3000Vrms
Common Mode Transient Immunity (Min):250kV/µs
Data Rate:25Mbps
Propagation Delay tpLH / tpHL (Max):25ns, 25ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):4.5ns, 4.5ns
Voltage - Supply:3V ~ 5.5V
Operating Temperature:-40°C ~ 105°C
Mounting Type:Surface Mount
Package / Case:28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC-W-FP
