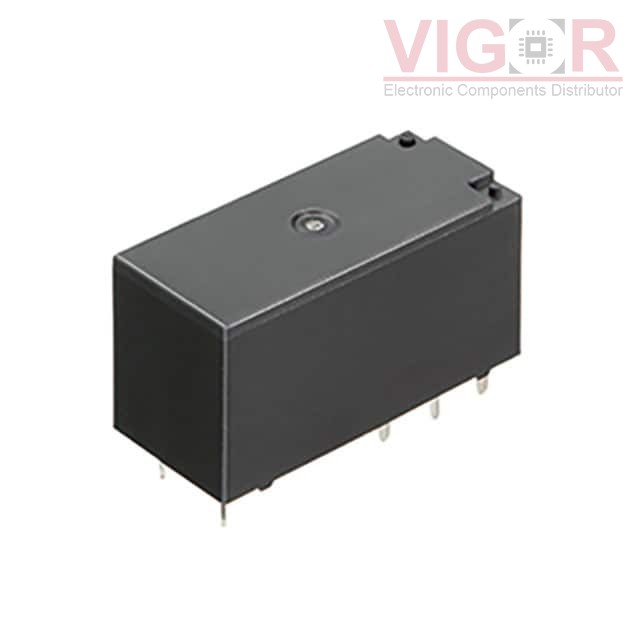

ALZN1B09W

ALZN1B09W

Image is for reference,
please contact us to get the real picture

Part No :

ALZN1B09W

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 16A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
ALZN1B09W PDF
Availability
184 pieces
Unit Price
$2.71000

Current price of ALZN1B09W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ALZN1B09W Specifications
Type Description
Series:ALZN
Package:Tray
Part Status:Active
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):16 A
Switching Voltage:440VAC - Max
Coil Current:44.4 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin
Seal Rating:Sealed - Flux Protection
Coil Insulation:Class B
Must Operate Voltage:6.3 VDC
Must Release Voltage:0.9 VDC
Operate Time:15 ms
Release Time:5 ms
Operating Temperature:-40°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT RPYA002A24LT

RPYA002A24LT

RLY DPDT 10A 24VAC LED TEST
HOT KUP-14D45-24

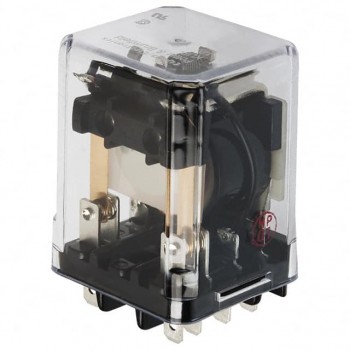

KUP-14D45-24

RELAY GEN PURPOSE 3PDT 10A 24V
HOT RU4S-M-A24

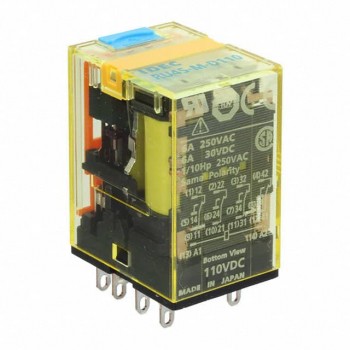

RU4S-M-A24
