NR01103ANG13-1C

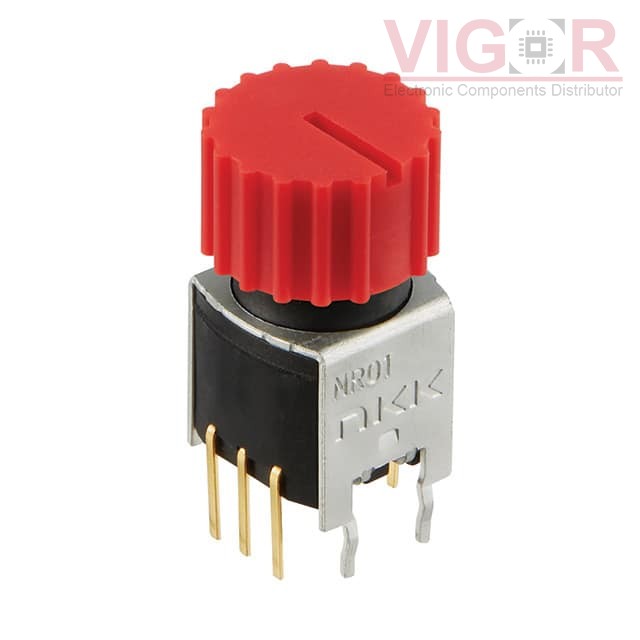

Image is for reference,
please contact us to get the real picture

Part No :: NR01103ANG13-1C

Manufacturer: NKK Switches

Description: SWITCH ROTARY SP3T 0.4VA 28V

Catalog: Rotary Switches

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: NR01103ANG13-1C PDF

Availability: 673 pieces

Unit Price: ~~$11.55000~~

Current price of NR01103ANG13-1C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NR01103ANG13-1C Specifications

Type	Description
Series:	NR01
Package:	Bulk
Part Status:	Active
Number of Positions:	3
Index Stops:	Fixed
Number of Decks:	1
Number of Poles per Deck:	1
Circuit per Deck:	SP3T
Contact Timing:	Non-Shorting (BBM)
Current Rating (Amps):	0.4VA (AC/DC)
Voltage Rating - AC:	28 V
Voltage Rating - DC:	28 V
Actuator Type:	Knob
Actuator Length:	7.00mm
Angle of Throw:	45°
Contact Material:	Beryllium Copper
Contact Finish:	Gold
Mounting Type:	Through Hole
Termination Style:	PC Pin
Features:	-
Depth Behind Panel:	10.50mm

Please confirm the specifications of the products when ordering.
