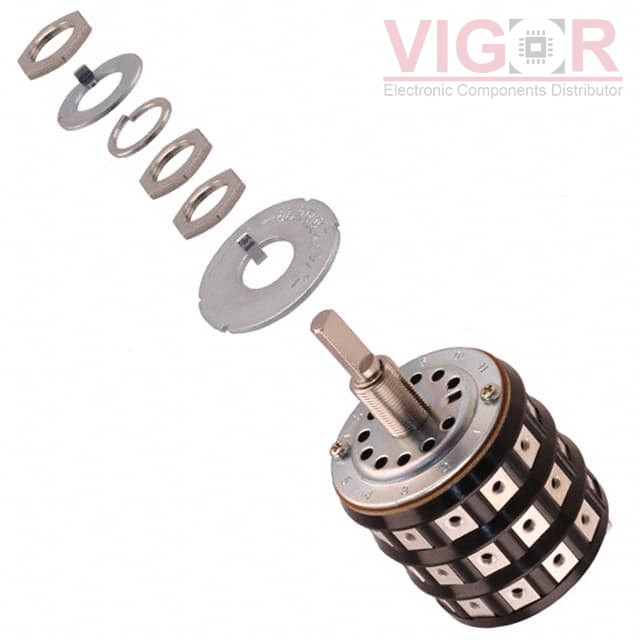

TS3N

TS3N

Image is for reference,
please contact us to get the real picture

Part No :

TS3N

Manufacturer
NKK Switches
Description
SWITCH ROTARY 2-11POS 6A 125V
Catalog
Rotary Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
TS3N PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TS3N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TS3N Specifications
Type Description
Series:TS
Package:Box
Part Status:Obsolete
Number of Positions:2 ~ 11
Index Stops:Adjustable
Number of Decks:3
Number of Poles per Deck:1
Circuit per Deck:SP11T
Contact Timing:Non-Shorting (BBM)
Current Rating (Amps):6A (AC)
Voltage Rating - AC:125 V
Voltage Rating - DC:-
Actuator Type:Flatted (6mm Dia)
Actuator Length:15.60mm
Angle of Throw:30°
Contact Material:Phosphor Bronze
Contact Finish:-
Mounting Type:Panel Mount
Termination Style:Screw Terminal
Features:-
Depth Behind Panel:46.00mm
