E36D501LGN682MFE3M

E36D501LGN682MFE3M

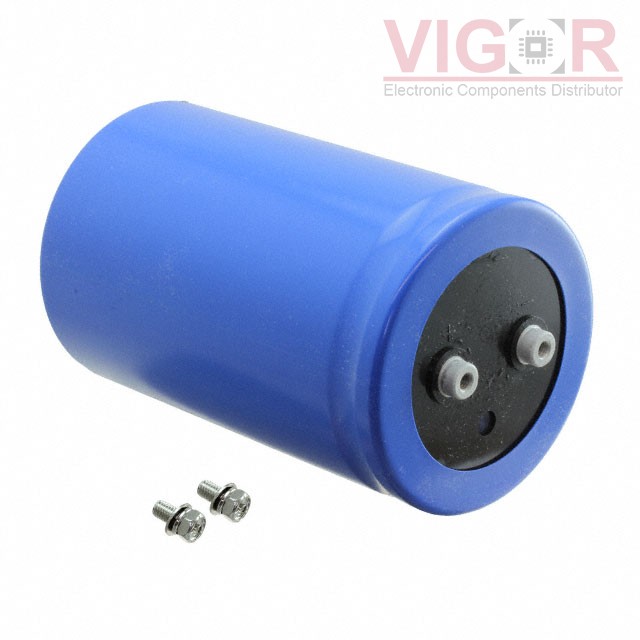

Image is for reference,
please contact us to get the real picture

Part No :

E36D501LGN682MFE3M

Manufacturer
United Chemi-Con
Description
CAP ALUM 6800UF 20% 500V SCREW
Catalog
Aluminum Electrolytic Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
E36D501LGN682MFE3M PDF
Availability
1 pieces
Unit Price
$71.57000

Current price of E36D501LGN682MFE3M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

E36D501LGN682MFE3M Specifications
Type Description
Series:U36D
Package:Bulk
Part Status:Obsolete
Capacitance:6800 µF
Tolerance:±20%
Voltage - Rated:500 V
ESR (Equivalent Series Resistance):76mOhm @ 120Hz
Lifetime @ Temp.:2000 Hrs @ 85°C
Operating Temperature:-40°C ~ 85°C
Polarization:Polar
Ratings:-
Applications:General Purpose
Ripple Current @ Low Frequency:8.35 A @ 120 Hz
Ripple Current @ High Frequency:11.69 A @ 3 kHz
Impedance:-
Lead Spacing:1.252" (31.80mm)
Size / Dimension:3.500" Dia (88.90mm)
Height - Seated (Max):5.625" (142.88mm)
Surface Mount Land Size:-
Mounting Type:Chassis Mount
Package / Case:Radial, Can - Screw Terminals
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT UMW0J331MDD1TE

UMW0J331MDD1TE

CAP ALUM 330UF 20% 6.3V RADIAL
HOT EDK107M063S9PAA

EDK107M063S9PAA

CAP ALUM 100UF 20% 63V SMD

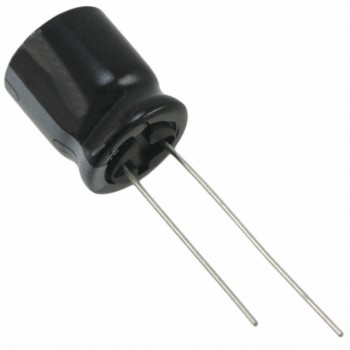

HOT UHE1J271MHD6TO
