Type | Description |
---|---|
Series: | 180 CPS |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Type: | Polymer |
Capacitance: | 560 µF |
Tolerance: | ±20% |
Voltage - Rated: | 2.5 V |
ESR (Equivalent Series Resistance): | - |
Lifetime @ Temp.: | 2000 Hrs @ 105°C |
Operating Temperature: | -55°C ~ 105°C |
Ratings: | - |
Applications: | General Purpose |
Ripple Current @ Low Frequency: | - |
Ripple Current @ High Frequency: | 4.2 A @ 100 kHz |
Impedance: | 9 mOhms |
Lead Spacing: | - |
Size / Dimension: | 0.248" Dia (6.30mm) |
Height - Seated (Max): | 0.303" (7.70mm) |
Surface Mount Land Size: | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
Mounting Type: | Surface Mount |
Package / Case: | Radial, Can - SMD |

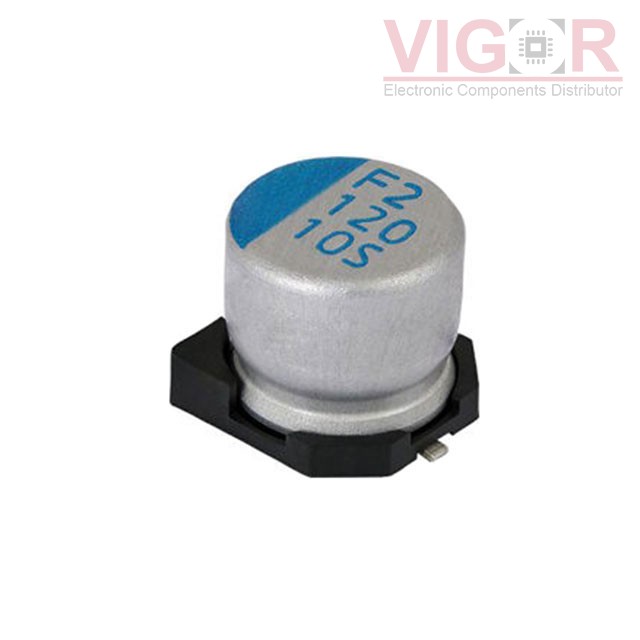

CAP ALUM POLY 560UF 20% 2.5V SMD
