Type | Description |
---|---|
Series: | ZC, Anti-Vibration |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Type: | Hybrid |
Capacitance: | 82 µF |
Tolerance: | ±20% |
Voltage - Rated: | 63 V |
ESR (Equivalent Series Resistance): | 30mOhm |
Lifetime @ Temp.: | 4000 Hrs @ 125°C |
Operating Temperature: | -55°C ~ 125°C |
Ratings: | AEC-Q200 |
Applications: | Automotive |
Ripple Current @ Low Frequency: | 210 mA @ 120 Hz |
Ripple Current @ High Frequency: | 1.4 A @ 100 kHz |
Impedance: | - |
Lead Spacing: | - |
Size / Dimension: | 0.394" Dia (10.00mm) |
Height - Seated (Max): | 0.413" (10.50mm) |
Surface Mount Land Size: | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
Mounting Type: | Surface Mount |
Package / Case: | Radial, Can - SMD |

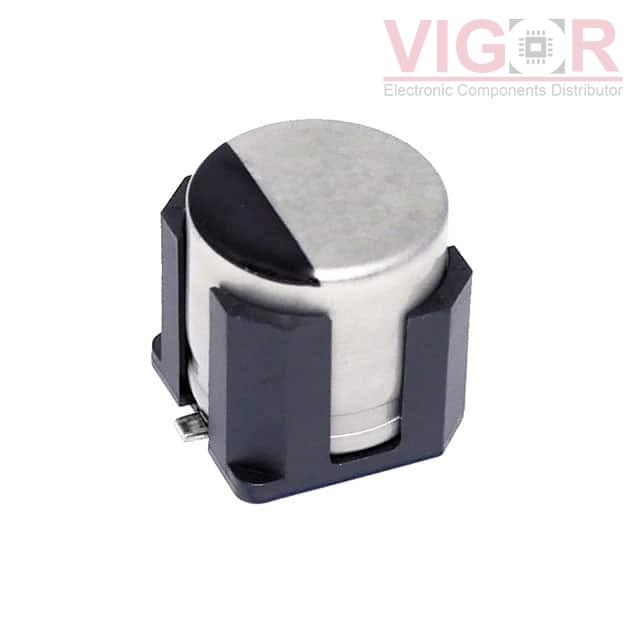

CAP ALUM HYBRID 82UF 20% 63V SMD
