EEH-AZS1E561B

EEH-AZS1E561B

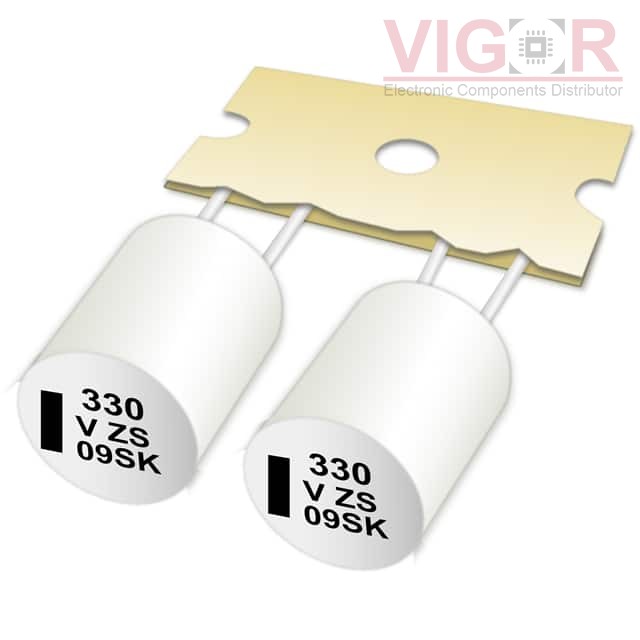

Image is for reference,
please contact us to get the real picture

Part No :

EEH-AZS1E561B

Manufacturer
Panasonic
Description
CAP ALUM POLY 560UF 20% 25V T/H
Catalog
Aluminum - Polymer Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
EEH-AZS1E561B PDF
Availability
0 pieces
Unit Price
$2.48000

Current price of EEH-AZS1E561B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EEH-AZS1E561B Specifications
Type Description
Series:ZS
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Active
Type:Hybrid
Capacitance:560 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):14mOhm
Lifetime @ Temp.:4000 Hrs @ 125°C
Operating Temperature:-55°C ~ 125°C
Ratings:AEC-Q200
Applications:Automotive
Ripple Current @ Low Frequency:600 mA @ 100 Hz
Ripple Current @ High Frequency:4 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.657" (16.70mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
