Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of NOME337M004R0035 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | OxiCap® NOM |
Package: | Tape & Reel (TR) |
Part Status: | Active |
Capacitance: | 330 µF |
Tolerance: | ±20% |
Voltage - Rated: | 4 V |
ESR (Equivalent Series Resistance): | 35 mOhms |
Current - Leakage: | 26.4 µA |
Dissipation Factor: | 8% |
Mounting Type: | Surface Mount |
Package / Case: | 2917 (7343 Metric) |
Manufacturer Size Code: | E |
Height - Seated (Max): | 0.169" (4.30mm) |
Features: | Low ESR Multi-anode |
Operating Temperature: | -55°C ~ 125°C |
Supplier Device Package: | 2917 (7343 Metric) |
Size / Dimension: | 0.287" L x 0.169" W (7.30mm x 4.30mm) |

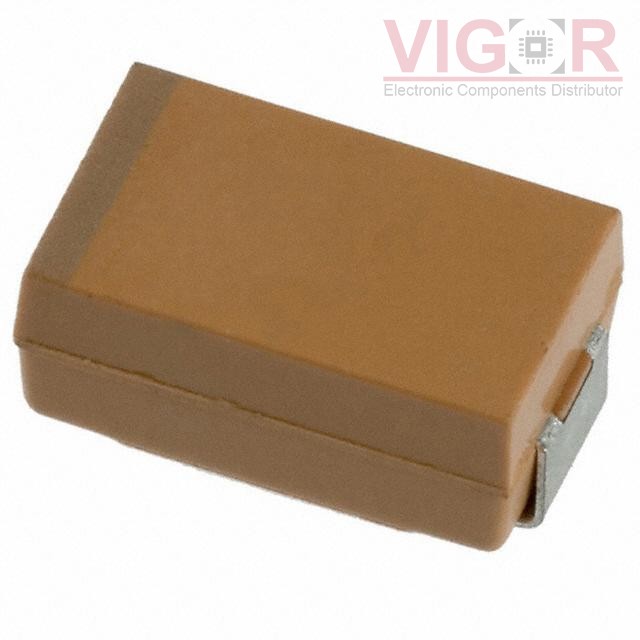

CAP NIOB OXIDE 330UF 20% 4V 2917
