0685H9100-01

0685H9100-01

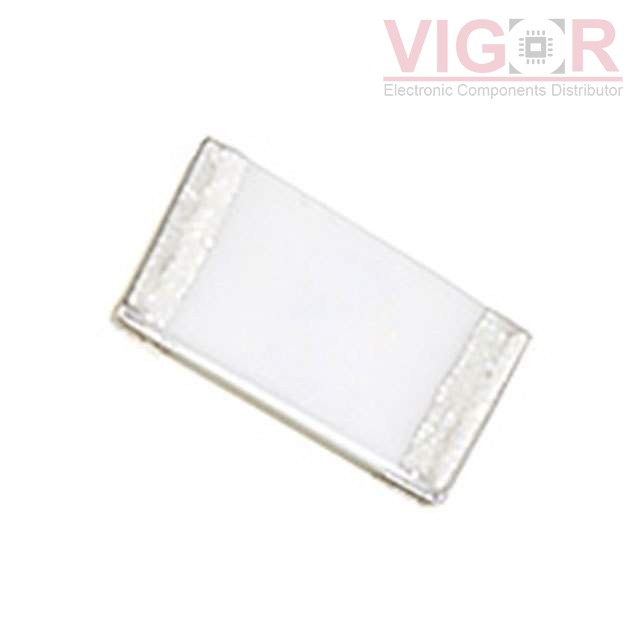

Image is for reference,
please contact us to get the real picture

Part No :

0685H9100-01

Manufacturer
Bel Fuse, Inc.
Description
FUSE BOARD MNT 10A 125VAC 32VDC
Catalog
Fuses
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
0685H9100-01 PDF
Availability
83 pieces
Unit Price
$0.29000

Current price of 0685H9100-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0685H9100-01 Specifications
Type Description
Series:C1H
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Mounting Type:Surface Mount
Fuse Type:Board Mount (Cartridge Style Excluded)
Current Rating (Amps):10 A
Voltage Rating - AC:125 V
Voltage Rating - DC:32 V
Response Time:Fast Blow
Package / Case:1206 (3216 Metric)
Breaking Capacity @ Rated Voltage:150A
Melting I²t:5.9
Approval Agency:AEC-Q200, cURus
Operating Temperature:-55°C ~ 125°C
Color:-
Size / Dimension:0.126" L x 0.062" W x 0.026" H (3.20mm x 1.58mm x 0.65mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
