2016L100PR

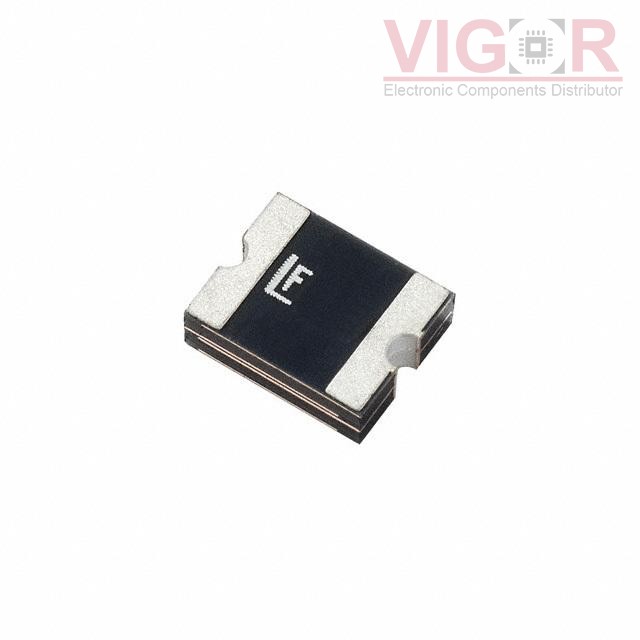

Image is for reference,
please contact us to get the real picture

Part No :: 2016L100PR

Manufacturer: Wickmann / Littelfuse

Description: PTC RESET FUSE 15V 1.1A 2016

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: 2016L100PR PDF

Availability: 5850 pieces

Unit Price: ~~$0.66000~~

Current price of 2016L100PR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2016L100PR Specifications

Type	Description
Series:	POLY-FUSE®, 2016L
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymeric
Voltage - Max:	15V
Current - Max:	40 A
Current - Hold (Ih) (Max):	1.1 A
Current - Trip (It):	2.2 A
Time to Trip:	500 ms
Resistance - Initial (Ri) (Min):	100 mOhms
Resistance - Post Trip (R1) (Max):	400 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	2016 (5041 Metric), Concave
Size / Dimension:	0.200" L x 0.160" W (5.08mm x 4.07mm)
Height - Seated (Max):	-
Thickness (Max):	0.030" (0.75mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
