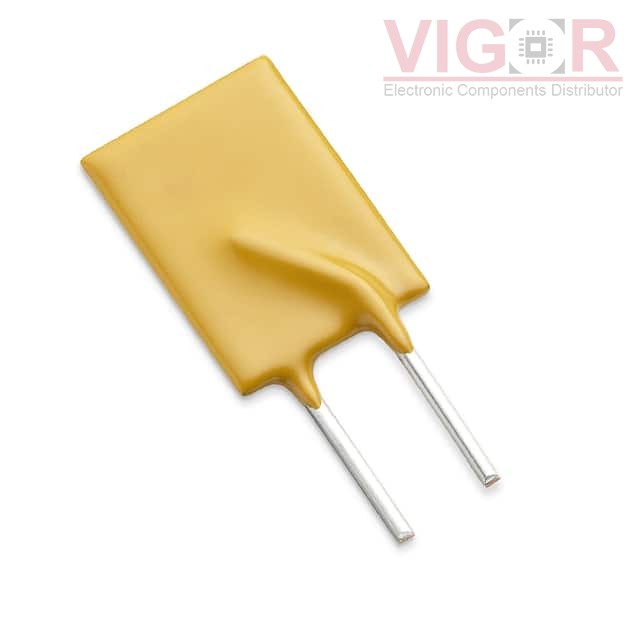

AHRL700

Image is for reference,
please contact us to get the real picture

Part No :: AHRL700

Manufacturer: Wickmann / Littelfuse

Description: PTC RESET FUSE 7A 16V RAD

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: AHRL700 PDF

Availability: 0 pieces

Unit Price: ~~$1.06000~~

Current price of AHRL700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHRL700 Specifications

Type	Description
Series:	PolySwitch®, AHRL
Package:	Bulk
Part Status:	Active
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	7 A
Current - Trip (It):	14 A
Time to Trip:	6.8 s
Resistance - Initial (Ri) (Min):	8.5 mOhms
Resistance - Post Trip (R1) (Max):	14 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.465" L x 0.118" W (11.80mm x 3.00mm)
Height - Seated (Max):	0.685" (17.40mm)
Thickness (Max):	-
Lead Spacing:	0.199" (5.05mm)
