PTCCL11H701DBE

PTCCL11H701DBE

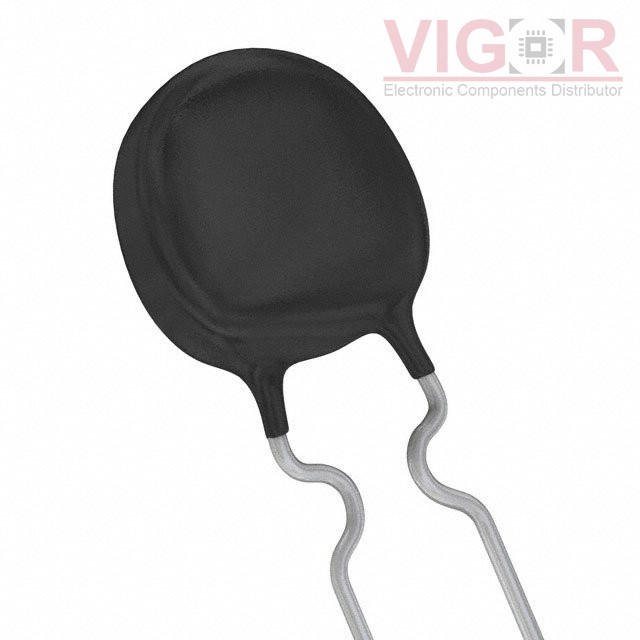

Image is for reference,
please contact us to get the real picture

Part No :

PTCCL11H701DBE

Manufacturer
Vishay BC Components/Beyshlag/Draloric
Description
PTC RESET FUSE 30V 700MA RADIAL
Catalog
PTC Resettable Fuses
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
PTCCL11H701DBE PDF
Availability
1723 pieces
Unit Price
$1.67000

Current price of PTCCL11H701DBE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PTCCL11H701DBE Specifications
Type Description
Series:PTCCL
Package:Bulk
Part Status:Active
Type:Ceramic
Voltage - Max:30V
Current - Max:8 A
Current - Hold (Ih) (Max):700 mA
Current - Trip (It):1.05 A
Time to Trip:-
Resistance - Initial (Ri) (Min):-
Resistance - Post Trip (R1) (Max):-
Resistance - 25°C (Typ):1.3 Ohms
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Through Hole
Package / Case:Radial, Disc
Size / Dimension:0.413" Dia x 0.157" T (10.50mm x 4.00mm)
Height - Seated (Max):0.606" (15.40mm)
Thickness (Max):-
Lead Spacing:0.197" (5.00mm)
