MF-NSMF020-2

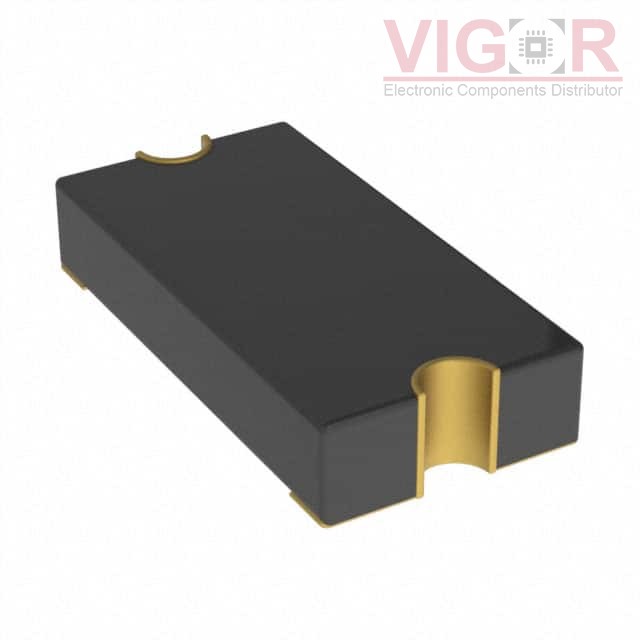

Image is for reference,
please contact us to get the real picture

Part No :: MF-NSMF020-2

Manufacturer: J.W. Miller / Bourns

Description: PTC RESET FUSE 24V 200MA 1206

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Jul 18 - Jul 22 2025

DataSheet: MF-NSMF020-2 PDF

Availability: 4045 pieces

Unit Price: ~~$0.33000~~

Current price of MF-NSMF020-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MF-NSMF020-2 Specifications

Type	Description
Series:	Multifuse®, MF-NSMF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymeric
Voltage - Max:	24V
Current - Max:	10 A
Current - Hold (Ih) (Max):	200 mA
Current - Trip (It):	460 mA
Time to Trip:	600 ms
Resistance - Initial (Ri) (Min):	600 mOhms
Resistance - Post Trip (R1) (Max):	2.6 Ohms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	AEC-Q200
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric), Concave
Size / Dimension:	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):	-
Thickness (Max):	0.033" (0.85mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
