AHRL1000

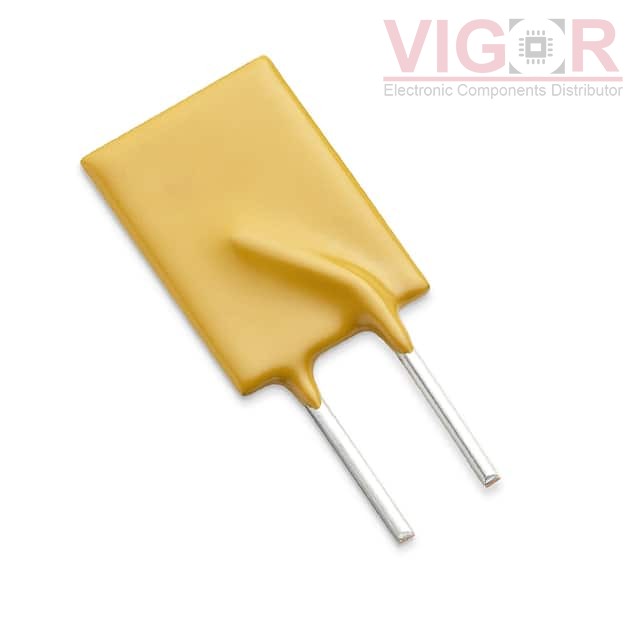

Image is for reference,
please contact us to get the real picture

Part No :: AHRL1000

Manufacturer: Wickmann / Littelfuse

Description: PTC RESET FUSE 10A 16V RAD

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: AHRL1000 PDF

Availability: 0 pieces

Unit Price: ~~$1.46000~~

Current price of AHRL1000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHRL1000 Specifications

Type	Description
Series:	PolySwitch®, AHRL
Package:	Bulk
Part Status:	Active
Type:	Polymeric
Voltage - Max:	16V
Current - Max:	100 A
Current - Hold (Ih) (Max):	10 A
Current - Trip (It):	20 A
Time to Trip:	10 s
Resistance - Initial (Ri) (Min):	4.2 mOhms
Resistance - Post Trip (R1) (Max):	6.8 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.567" L x 0.142" W (14.40mm x 3.60mm)
Height - Seated (Max):	0.882" (22.40mm)
Thickness (Max):	-
Lead Spacing:	0.400" (10.15mm)

Please confirm the specifications of the products when ordering.
