NANOSMD500LR-2

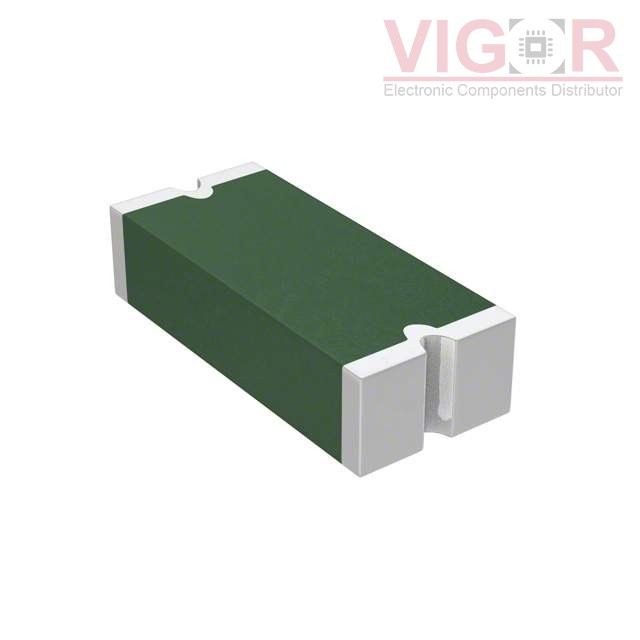

Image is for reference,
please contact us to get the real picture

Part No :: NANOSMD500LR-2

Manufacturer: Wickmann / Littelfuse

Description: PTC RESET FUSE 6V 5A 1206

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: NANOSMD500LR-2 PDF

Availability: 568 pieces

Unit Price: ~~$0.74000~~

Current price of NANOSMD500LR-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NANOSMD500LR-2 Specifications

Type	Description
Series:	PolySwitch®, microSMD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Polymeric
Voltage - Max:	6V
Current - Max:	50 A
Current - Hold (Ih) (Max):	5 A
Current - Trip (It):	10 A
Time to Trip:	2 s
Resistance - Initial (Ri) (Min):	2 mOhms
Resistance - Post Trip (R1) (Max):	8 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 80°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	1206 (3216 Metric)
Size / Dimension:	0.127" L x 0.063" W (3.22mm x 1.61mm)
Height - Seated (Max):	-
Thickness (Max):	0.032" (0.80mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
