Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of RGEF1400-1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

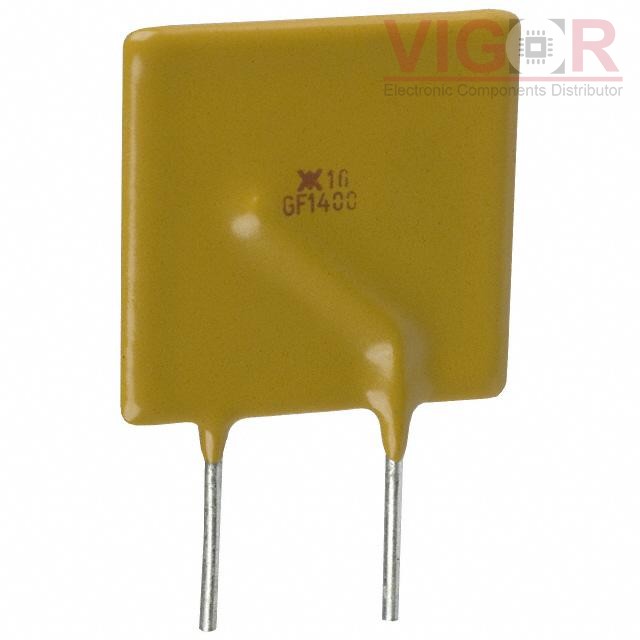

Type | Description |
---|---|
Series: | PolySwitch®, RGEF |
Package: | Bag |
Part Status: | Active |
Type: | Polymeric |
Voltage - Max: | 16V |
Current - Max: | 100 A |
Current - Hold (Ih) (Max): | 14 A |
Current - Trip (It): | 23.8 A |
Time to Trip: | 9 s |
Resistance - Initial (Ri) (Min): | 2.6 mOhms |
Resistance - Post Trip (R1) (Max): | 6.4 mOhms |
Resistance - 25°C (Typ): | - |
Operating Temperature: | -40°C ~ 85°C |
Ratings: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Disc |
Size / Dimension: | 0.925" L x 0.114" W (23.50mm x 2.90mm) |
Height - Seated (Max): | 1.098" (27.90mm) |
Thickness (Max): | - |
Lead Spacing: | 0.400" (10.15mm) |
