AHRF100

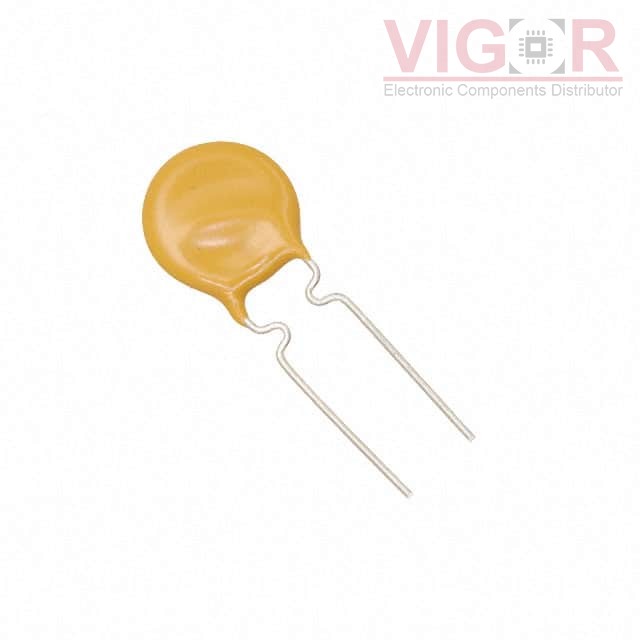

Image is for reference,
please contact us to get the real picture

Part No :: AHRF100

Manufacturer: Wickmann / Littelfuse

Description: PTC RESET FUSE 30V 1A RADIAL

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Aug 15 - Aug 19 2025

DataSheet: AHRF100 PDF

Availability: 913 pieces

Unit Price: ~~$0.69000~~

Current price of AHRF100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AHRF100 Specifications

Type	Description
Series:	PolySwitch®, AHRF
Package:	Bag
Part Status:	Active
Type:	Polymeric
Voltage - Max:	30V
Current - Max:	40 A
Current - Hold (Ih) (Max):	1 A
Current - Trip (It):	1.9 A
Time to Trip:	6.2 s
Resistance - Initial (Ri) (Min):	150 mOhms
Resistance - Post Trip (R1) (Max):	430 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.382" Dia x 0.118" T (9.70mm x 3.00mm)
Height - Seated (Max):	0.535" (13.60mm)
Thickness (Max):	-
Lead Spacing:	0.199" (5.05mm)

Please confirm the specifications of the products when ordering.
