MF-R800-005

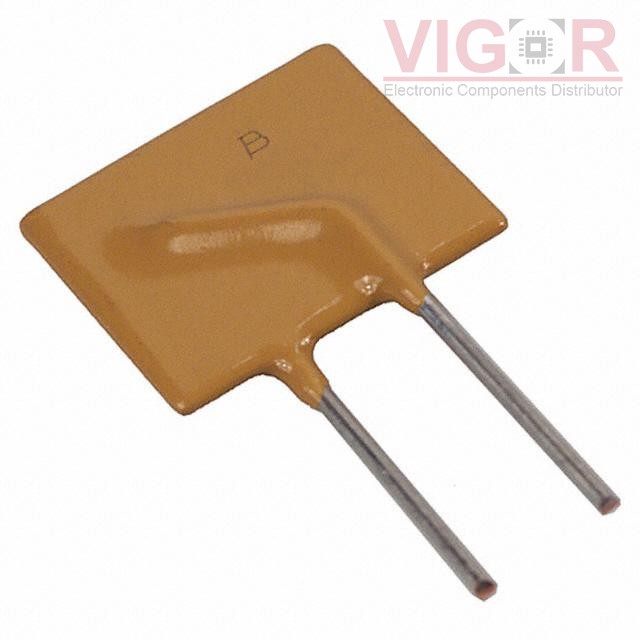

Image is for reference,
please contact us to get the real picture

Part No :: MF-R800-005

Manufacturer: J.W. Miller / Bourns

Description: PTC RESET FUSE 30V 8A RADIAL

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: MF-R800-005 PDF

Availability: 0 pieces

Unit Price: ~~$0.49300~~

Current price of MF-R800-005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MF-R800-005 Specifications

Type	Description
Series:	Multifuse®, MF-R
Package:	Bulk
Part Status:	Active
Type:	Polymeric
Voltage - Max:	30V
Current - Max:	40 A
Current - Hold (Ih) (Max):	8 A
Current - Trip (It):	16 A
Time to Trip:	18.8 s
Resistance - Initial (Ri) (Min):	5 mOhms
Resistance - Post Trip (R1) (Max):	30 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Disc
Size / Dimension:	0.953" L x 0.118" W (24.20mm x 3.00mm)
Height - Seated (Max):	1.295" (32.90mm)
Thickness (Max):	-
Lead Spacing:	0.402" (10.20mm)

Please confirm the specifications of the products when ordering.
