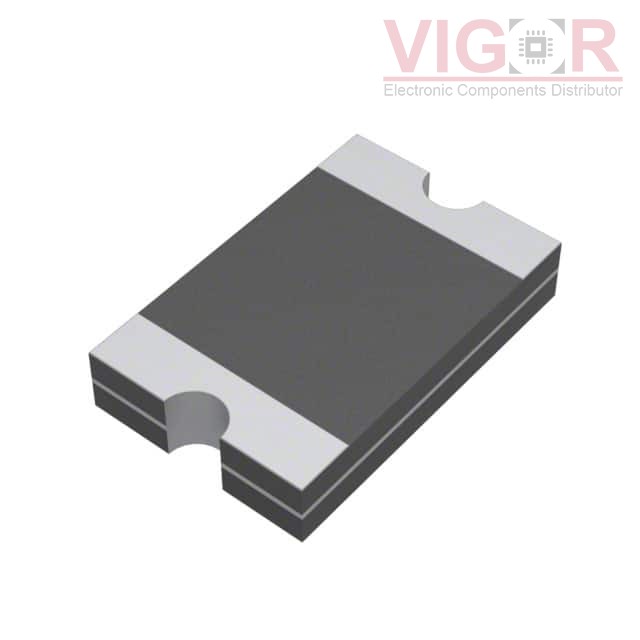

SMD0805B050TF

Image is for reference,
please contact us to get the real picture

Part No :: SMD0805B050TF

Manufacturer: Yageo

Description: PPTC SMD 0805, 6V 0.5A, REEL 7"

Catalog: PTC Resettable Fuses

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: SMD0805B050TF PDF

Availability: 0 pieces

Unit Price: ~~$0.12000~~

Current price of SMD0805B050TF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMD0805B050TF Specifications

Type	Description
Series:	SMD0805
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Polymeric
Voltage - Max:	6V
Current - Max:	100 A
Current - Hold (Ih) (Max):	500 mA
Current - Trip (It):	1 A
Time to Trip:	100 ms
Resistance - Initial (Ri) (Min):	150 mOhms
Resistance - Post Trip (R1) (Max):	850 mOhms
Resistance - 25°C (Typ):	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric), Concave
Size / Dimension:	0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max):	-
Thickness (Max):	0.049" (1.25mm)
Lead Spacing:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

06R075BU

PTC RESET FUSE 6V 750MA RADIAL

HOT

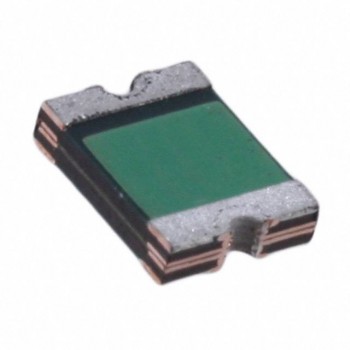

0ZCH0010FF2E

PTC RESET FUSE 60V 100MA 1210

HOT

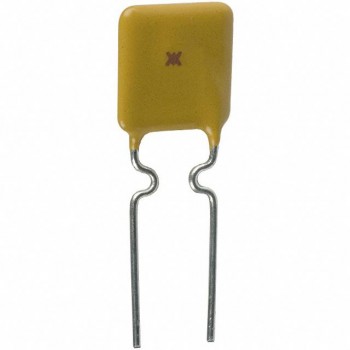

RUEF090-AP
