Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of P4KE9.1CAHE3/73 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | Automotive, AEC-Q101, TransZorb® |
Package: | Tape & Box (TB) |
Part Status: | Active |
Type: | Zener |
Unidirectional Channels: | - |
Bidirectional Channels: | 1 |
Voltage - Reverse Standoff (Typ): | 7.78V |
Voltage - Breakdown (Min): | 8.65V |
Voltage - Clamping (Max) @ Ipp: | 13.4V |
Current - Peak Pulse (10/1000µs): | 29.9A |
Power - Peak Pulse: | 400W |
Power Line Protection: | No |
Applications: | Automotive |
Capacitance @ Frequency: | - |
Operating Temperature: | -55°C ~ 175°C (TJ) |
Mounting Type: | Through Hole |
Package / Case: | DO-204AL, DO-41, Axial |
Supplier Device Package: | DO-204AL (DO-41) |

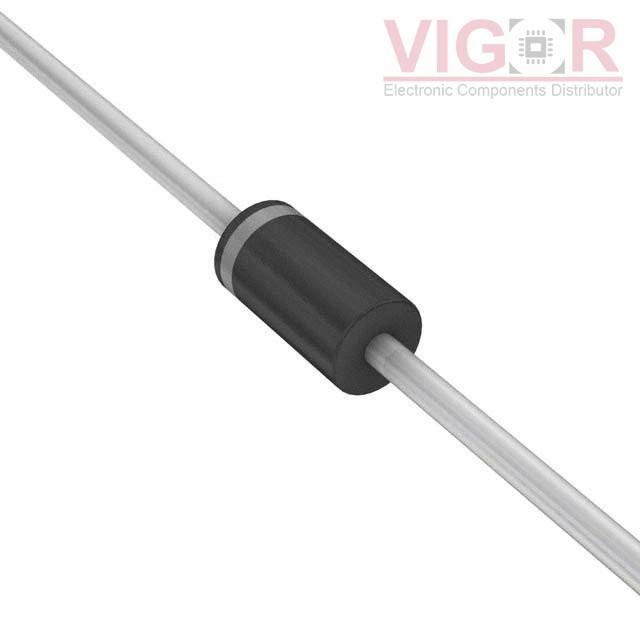

TVS DIODE 7.78V 13.4V DO204AL
