ESD5Z12

ESD5Z12

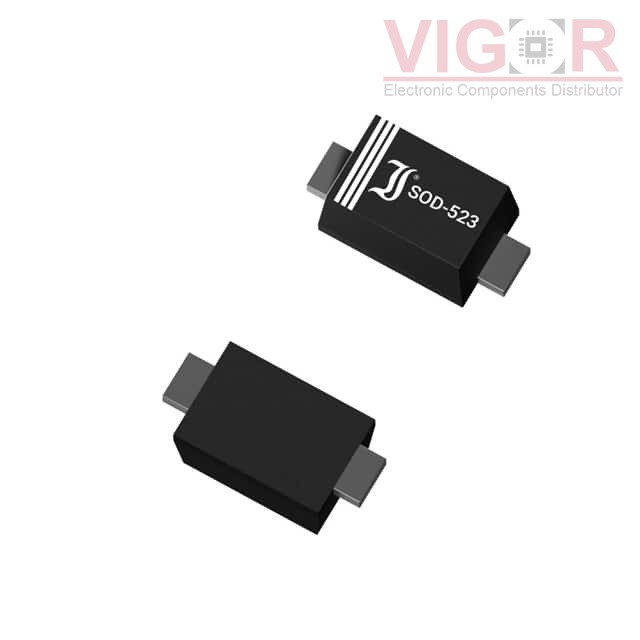

Image is for reference,
please contact us to get the real picture

Part No :

ESD5Z12

Manufacturer
Diotec Semiconductor
Description
ESD SOD-523 12V 240W UNI
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
ESD5Z12 PDF
Availability
0 pieces
Unit Price
$0.04260

Current price of ESD5Z12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD5Z12 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):12V
Voltage - Breakdown (Min):14.1V
Voltage - Clamping (Max) @ Ipp:17V
Current - Peak Pulse (10/1000µs):5A (8/20µs)
Power - Peak Pulse:240W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:55pF @ 1MHz
Operating Temperature:-50°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-79, SOD-523
Supplier Device Package:SOD-523
