824520800

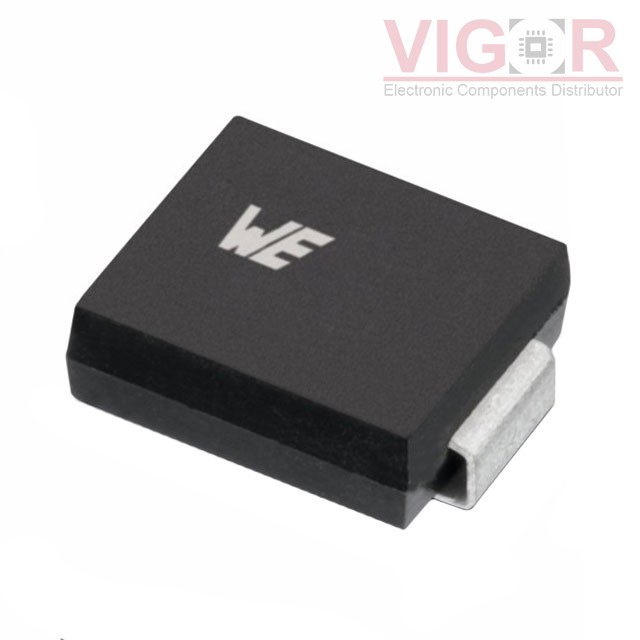

Image is for reference,
please contact us to get the real picture

Part No :: 824520800

Manufacturer: Würth Elektronik Midcom

Description: TVS DIODE 8V 13.6V DO214AA

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Jul 31 - Aug 04 2025

DataSheet: 824520800 PDF

Availability: 0 pieces

Unit Price: ~~$0.23500~~

Current price of 824520800 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

824520800 Specifications

Type	Description
Series:	WE-TVSP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	8V (Max)
Voltage - Breakdown (Min):	9.36V (Typ)
Voltage - Clamping (Max) @ Ipp:	13.6V
Current - Peak Pulse (10/1000µs):	44.2A
Power - Peak Pulse:	600W
Power Line Protection:	No
Applications:	General Purpose
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	DO-214AA, SMB
Supplier Device Package:	DO-214AA

Please confirm the specifications of the products when ordering.
