CD214B-T22ALF

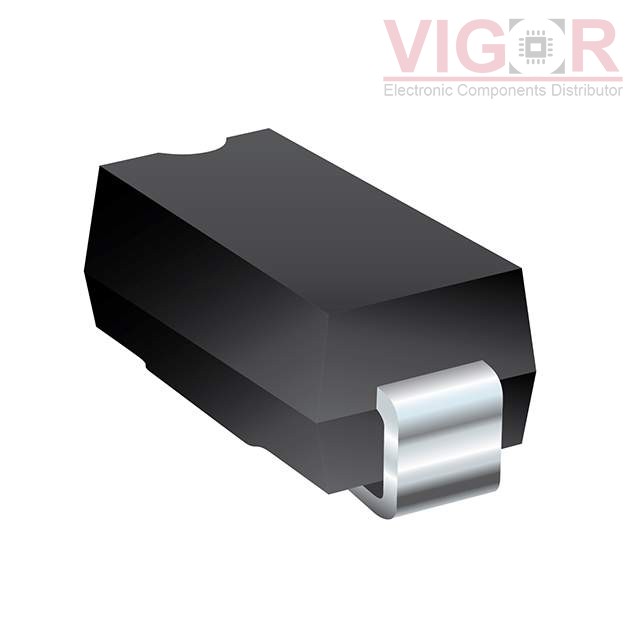

Image is for reference,
please contact us to get the real picture

Part No :

CD214B-T22ALF

Manufacturer
J.W. Miller / Bourns
Description
TVS DIODE 22V 35.5V SMB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
CD214B-T22ALF PDF
Availability
0 pieces
Unit Price
$0.13500

Current price of CD214B-T22ALF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:35.5V
Current - Peak Pulse (10/1000µs):16.9A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AA, SMB
Supplier Device Package:SMB (DO-214AA)
