PESD5V0V1BDSF,315

PESD5V0V1BDSF,315

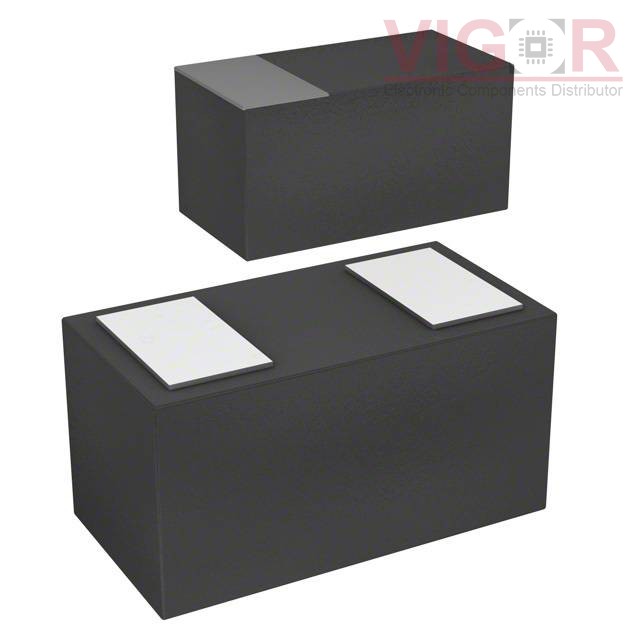

Image is for reference,
please contact us to get the real picture

Part No :

PESD5V0V1BDSF,315

Manufacturer
Nexperia
Description
TVS DIODE 5V 12.8V DSN0603-2
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
PESD5V0V1BDSF,315 PDF
Availability
5423 pieces
Unit Price
$0.35000

Current price of PESD5V0V1BDSF,315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PESD5V0V1BDSF,315 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):6V
Voltage - Clamping (Max) @ Ipp:12.8V
Current - Peak Pulse (10/1000µs):2A (8/20µs)
Power - Peak Pulse:20W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:5.3pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TA)
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:DSN0603-2
