ESDBL5V0AE1-TP

ESDBL5V0AE1-TP

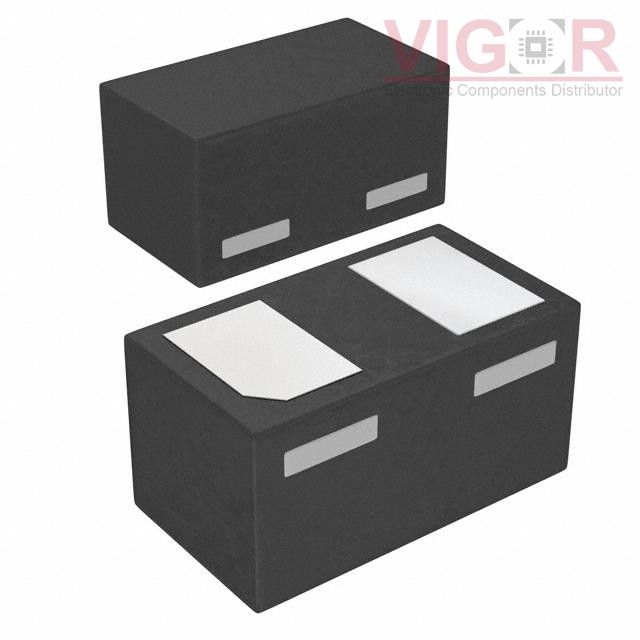

Image is for reference,
please contact us to get the real picture

Part No :

ESDBL5V0AE1-TP

Manufacturer
Micro Commercial Components (MCC)
Description
TVS DIODE 5V 12.5V 0201
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
ESDBL5V0AE1-TP PDF
Availability
0 pieces
Unit Price
$0.46000

Current price of ESDBL5V0AE1-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESDBL5V0AE1-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):5.8V
Voltage - Clamping (Max) @ Ipp:12.5V
Current - Peak Pulse (10/1000µs):5A (8/20µs)
Power - Peak Pulse:62.5W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:10pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:0201
