TMPG06-16AHE3_A/D

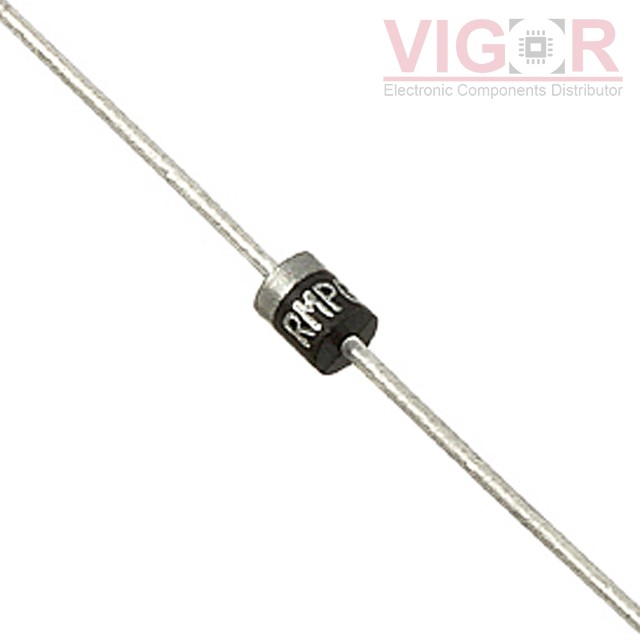

Image is for reference,
please contact us to get the real picture

Part No :: TMPG06-16AHE3_A/D

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: TVS DIODE 13.6V 22.5V MPG06

Catalog: TVS - Diodes

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: TMPG06-16AHE3_A/D PDF

Availability: 0 pieces

Unit Price: ~~$0.18755~~

Current price of TMPG06-16AHE3_A/D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TMPG06-16AHE3_A/D Specifications

Type	Description
Series:	Automotive, AEC-Q101, PAR®
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Zener
Unidirectional Channels:	1
Bidirectional Channels:	-
Voltage - Reverse Standoff (Typ):	13.6V
Voltage - Breakdown (Min):	15.2V
Voltage - Clamping (Max) @ Ipp:	22.5V
Current - Peak Pulse (10/1000µs):	17.8A
Power - Peak Pulse:	400W
Power Line Protection:	No
Applications:	Automotive
Capacitance @ Frequency:	-
Operating Temperature:	-65°C ~ 185°C (TJ)
Mounting Type:	Through Hole
Package / Case:	MPG06, Axial
Supplier Device Package:	MPG06

Please confirm the specifications of the products when ordering.
