MAP4KE15AE3

MAP4KE15AE3

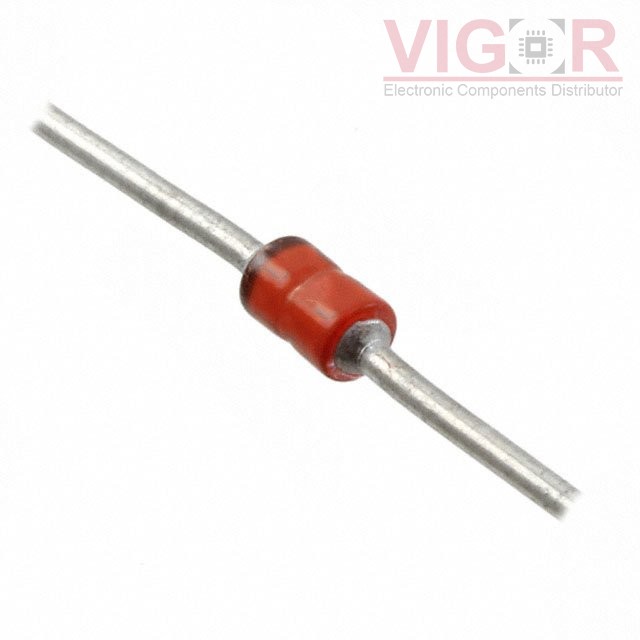

Image is for reference,
please contact us to get the real picture

Part No :

MAP4KE15AE3

Manufacturer
Roving Networks / Microchip Technology
Description
TVS DIODE 12.8V 21.2V DO204AL
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
MAP4KE15AE3 PDF
Availability
0 pieces
Unit Price
$5.46000

Current price of MAP4KE15AE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MAP4KE15AE3 Specifications
Type Description
Series:Military, MIL-PRF-19500
Package:Bulk
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):12.8V
Voltage - Breakdown (Min):14.3V
Voltage - Clamping (Max) @ Ipp:21.2V
Current - Peak Pulse (10/1000µs):19A
Power - Peak Pulse:400W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:DO-204AL, DO-41, Axial
Supplier Device Package:DO-204AL (DO-41)
