EGUARD0504FTR

EGUARD0504FTR

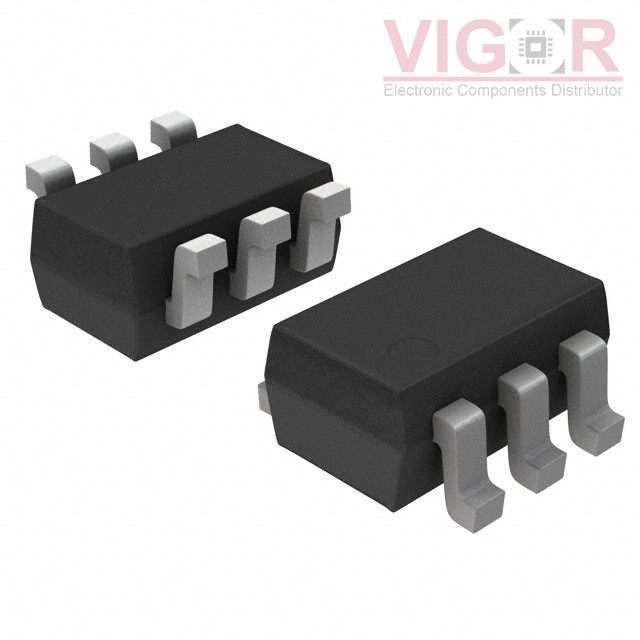

Image is for reference,
please contact us to get the real picture

Part No :

EGUARD0504FTR

Manufacturer
SMC Diode Solutions
Description
DIODE ESD ULTRA LOW CAPACITANCE
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
EGUARD0504FTR PDF
Availability
0 pieces
Unit Price
$0.91000

Current price of EGUARD0504FTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EGUARD0504FTR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Steering (Rail to Rail)
Unidirectional Channels:4
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):5V (Max)
Voltage - Breakdown (Min):6V
Voltage - Clamping (Max) @ Ipp:25V
Current - Peak Pulse (10/1000µs):6A (8/20µs)
Power - Peak Pulse:150W
Power Line Protection:Yes
Applications:DVI, HDMI, USB 2.0, USB OTG
Capacitance @ Frequency:3pF @ 1MHz
Operating Temperature:-55°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:SOT-363
