MA15KP22AE3

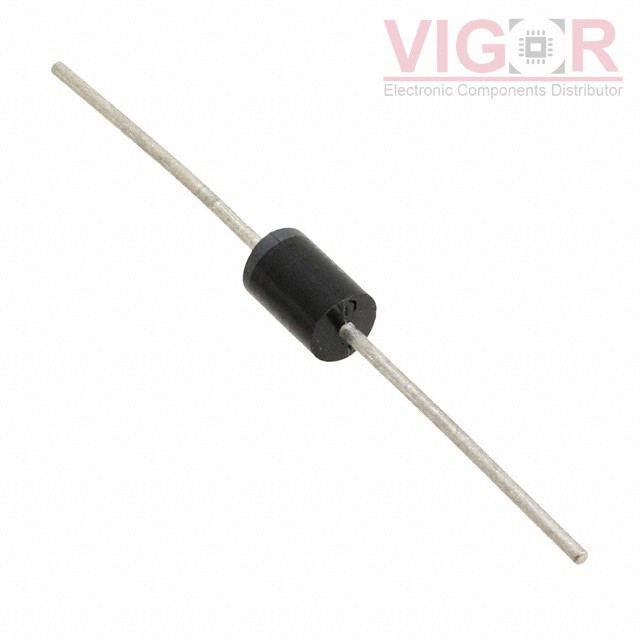

Image is for reference,
please contact us to get the real picture

Part No :

MA15KP22AE3

Manufacturer
Roving Networks / Microchip Technology
Description
TVS DIODE 22V 37.1V DO204AR
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
MA15KP22AE3 PDF
Availability
0 pieces
Unit Price
$24.95010

Current price of MA15KP22AE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Military, MIL-PRF-19500
Package:Bulk
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:37.1V
Current - Peak Pulse (10/1000µs):404A
Power - Peak Pulse:15000W (15kW)
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:DO-204AR, Axial
Supplier Device Package:DO-204AR
