VCUT0505B-HD1-GS08

VCUT0505B-HD1-GS08

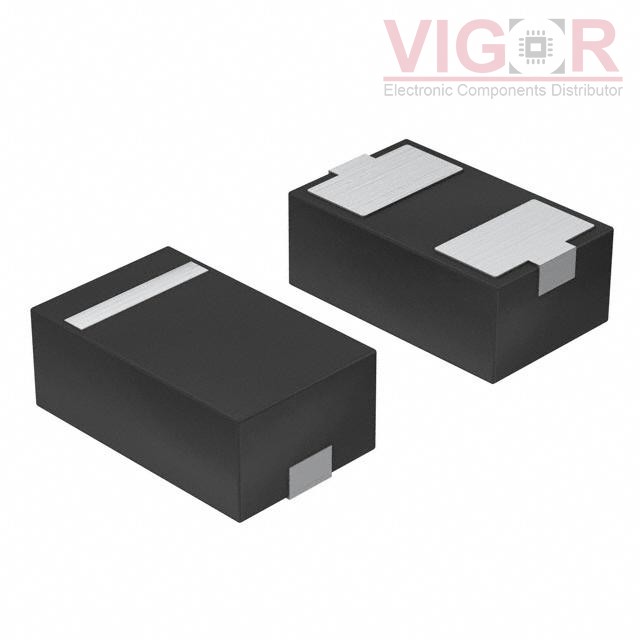

Image is for reference,
please contact us to get the real picture

Part No :

VCUT0505B-HD1-GS08

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 5.5V 16V LLP1006-2L
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
VCUT0505B-HD1-GS08 PDF
Availability
0 pieces
Unit Price
$0.47000

Current price of VCUT0505B-HD1-GS08 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VCUT0505B-HD1-GS08 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5.5V (Max)
Voltage - Breakdown (Min):7V
Voltage - Clamping (Max) @ Ipp:16V
Current - Peak Pulse (10/1000µs):3.5A (8/20µs)
Power - Peak Pulse:56W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:18pF @ 1MHz
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOD-882
Supplier Device Package:LLP1006-2L
